Boost Wi-Fi performance and increase network efficiency with 802.11ac Wave 2 technology XD2 access points (APs) meet today’s BYOD and IoT demands with the capacity to keep up whenever needs change. Ideal for offices, classrooms, conference rooms, and other areas requiring robust connectivity, the XD2 delivers extreme performance even with high-bandwidth applications.
Meet today’s Wi-Fi demands and Prepare for the Future
Future Proof Platform
Support software-defined radios that enable dual 802.11ac radio operation for a long product lifespan and gradual migration to Wave 2 as clients come to market.
Industry-leading Efficiency
Multi-user MIMO (MU-MIMO) Wave 2 advancement enables multiple clients to communicate at once revolutionizing Wi-Fi operation and dramatically increasing efficiency.
Superior Speed
Create an unsurpassed user experience including mobile applications and IoT devices with up to twice the speed of other 802.11ac Wave 2 APs on the market.
Boost Wi-Fi performance and increase network efficiency with 802.11ac Wave 2 technology.

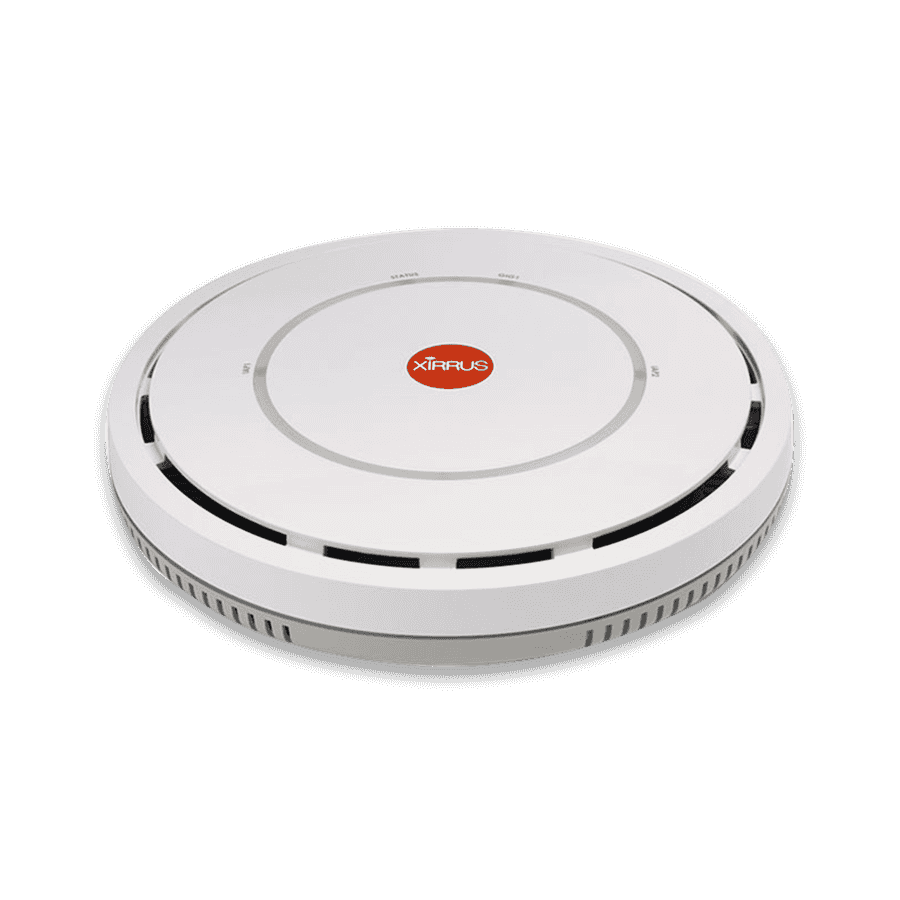

XD2 access points (APs) meet today’s BYOD and IoT demands with the capacity to keep up whenever needs change. Ideal for offices, classrooms, conference rooms, and other areas requiring robust connectivity, the XD2 delivers extreme performance even with high-bandwidth applications.
Manage and upgrade your network with ease—choose cloud-based or on-premise centralized network management. Customize installation through deployment kits, enclosures, and mounting options and build the system that works best for you.
Xirrus provides you with a broad range of Wi-Fi access points to meet your various mobile and IoT connectivity requirements. Choose the best AP for your specific need or a combination of APs to right size your network for different uses, Wi-Fi capacities, densities and performance needs.
Xirrus Indoor Access Points
XR-320Dual radio wall mount AP with 4 port Gigabit Ethernet switch. |
X2-120Value-driven dual radio 802.11ac AP. |
XD2-230High performance 802.11ac Wave 2 APs with MU-MIMO technology. |
XD2-240High performance 802.11ac Wave 2 APs with MU-MIMO technology. |
XD4-130Extreme density, 4-radio 802.11ac Wave1/Wave2 APs with 100s of client support on a single unit. |
XD4-240Extreme density, 4-radio 802.11ac Wave1/Wave2 APs with 100s of client support on a single unit. |
XA4-240Plenum rated extreme density 4-radio 802.11ac Wave2 AP with external antennas. |
|
|---|---|---|---|---|---|---|---|
| Wi-Fi Radios | 2 | 2 | 2 | 2 | 4 | 4 | 4 |
| BLE Radio | No | No | Yes | Yes | No | Yes | No |
| Total Radios | 2 | 2 | 3 | 3 | 4 | 5 | 4 |
| Wi-Fi Technology | 2×2 802.11ac Wave1 | 2×2 802.11ac Wave1 | 3×3 802.11ac Wave2 | 4×4 802.11ac Wave2 | 3×3 802.11ac Wave1 | 4×4 802.11ac Wave2 | 4×4 802.11ac Wave2 |
| Antennas | Internal | Internal | Internal | Internal | Internal | Internal | External |
| Software Defined Radios | N/A | N/A | Yes | Yes | Yes | Yes | Yes |
| Controller | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated |
| Uplinks | 1–1GbE | 1–1GbE | 2-1GbE | 2-1GbE | 2-1GbE | 1-2.5GbE + 1-1GbE | 1-2.5GbE + 1-1GbE |
| Max Number of Clients | 512 | 512 | 480 | 480 | 780 | 780 | 960 |
| Total Wi-Fi Bandwidth | 1.2Gbps | 1.2Gbps | 3.9Gbps | 6.9Gbps | 5.2Gbps | 13.8Gbps | 13.8Gbps |
| Example Uses | Hotel/Dorms/ Offices | Hotel/Dorms/ Retail | Offices/Classrooms/Hospitals/ Retail |
Offices/Classrooms/Hospitals/ Retail |
Dense Offices/Classrooms/Conference rooms | Dense Offices/Classrooms/Conference rooms | Convention Centers/Airports/Train Stations |
Xirrus Outdoor Access Points
XH2-120Ruggedized dual radio 802.11ac AP for harsh outdoor environments |
XH2-240High performance Wi-Fi for harsh environments |
Outdoor EnclosuresHatdened enclosure to convert indoor AP for outdoor use. |
|
|---|---|---|---|
| WiFi Radios | 2 | 2 | Up to 4 |
| BLE Radios | No | Yes | Varies |
| Total Radios | 2 | 3 | Up to 5 |
| WiFi Technology | 2×2 802.11ac Wave1 | 4×4:4, 802.11ac Wave 2 | 802.11ac Wave 1/Wave2 |
| Antennas | External | External | Internal |
| Software Defined Radios | Yes | Yes | Varies |
| Controller | Integrated | Integrated | Integrated |
| Uplinks | 1-2GbE | 1-2GbE | Up to 3.5GbE |
| Max Number of Clients | 512 | 512 | Up to 780 |
| Total Wi-Fi Bandwidth | 1.7Gbps | 6.9Gbps | Up to 13.8Gbps |
| Example Uses | General outdoors/Stadiums/Arenas | General outdoors/Freezers/Arenas | General outdoors/Stadiums/Arenas |
