Wi-Fi Built for the Future

With five high-speed software-defined radios, the XE5-8 Wi-Fi 6E access point enables seamless transition to Wi-Fi 6E with the ability to easily change from dual-band to tri-band (2.4 GHz, 5 GHz, 6 GHz) support when sufficient 6 GHz clients are available. The XE5-8 is fully backward compatible with existing Wi-Fi technology, enabling simultaneous support of new high-speed clients, legacy clients, low-bitrate IoT devices, and more in a single wireless infrastructure.

Cloud and On-Premises Management

XE5-8 operates with either Cambium Networks’ XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.

Limited Lifetime Warranty

The XE5-8 comes with a Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product.

Learn more about Wi-Fi 6E solutions in our “New Wi-Fi 6E Solutions from Cambium Networks” webinar replay.

Cambium Networks’ VP Bruce Miller discusses the benefits of Wi-Fi 6E with Kevin Tolly in the Tolly on Technology podcast.

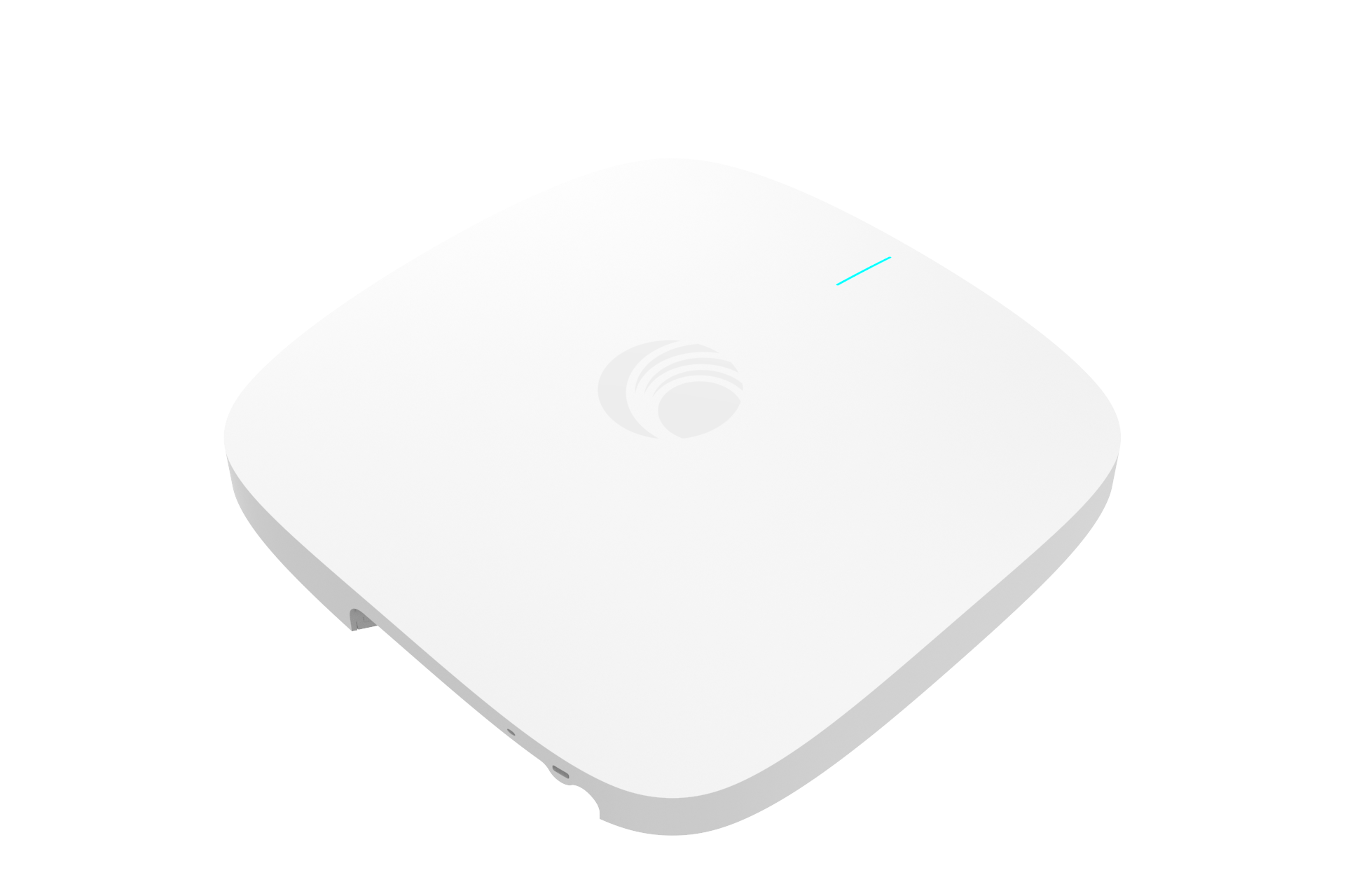

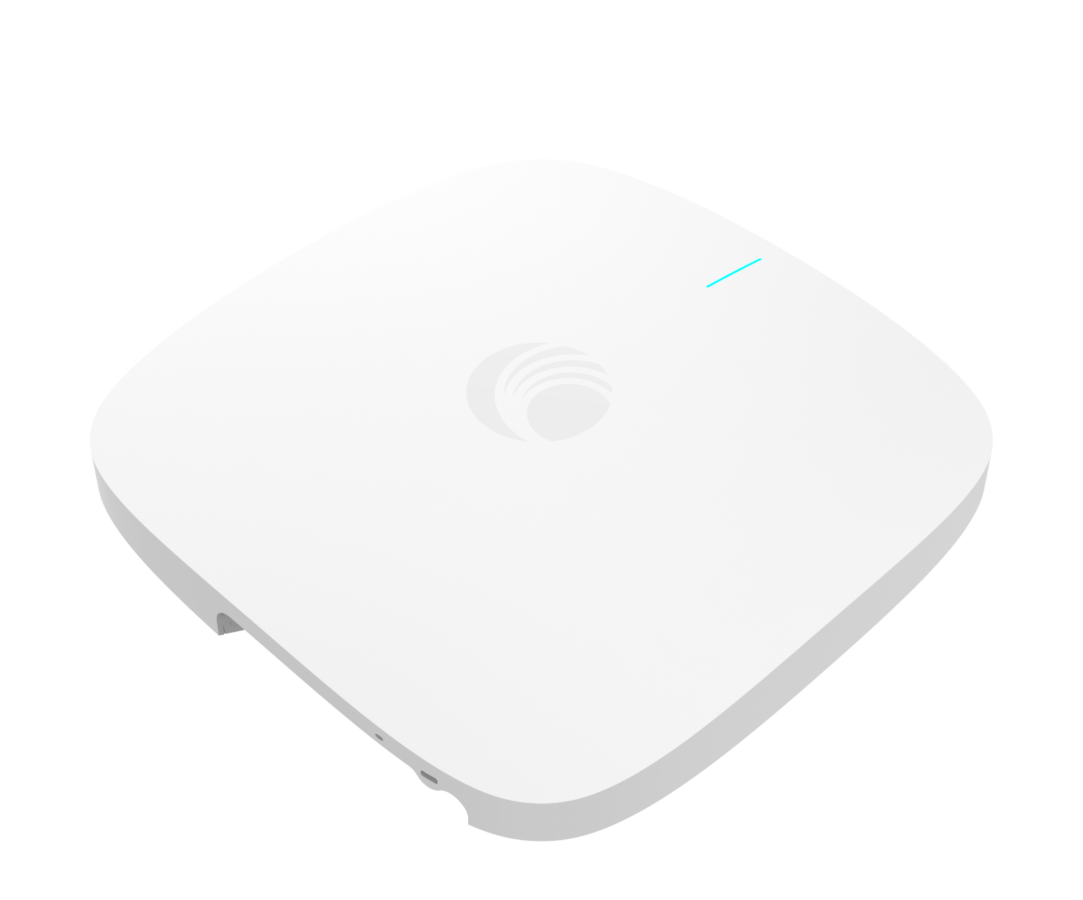

XE5-8 Wi-Fi 6E Indoor Wireless Access Point

Specifications

Access Point Specs

Radios
Two: 4x4 5/6 GHz 802.11a/n/ac/ax, SW configurable to 5 or 6GHz operation. Two: 4x4 5 GHz 802.11a/n/ac/ax, SW configurable to one 8x8 radio. One: 4x4 2.4 GHz 802.11 b/g/n/ax
Wi-Fi
802.11 a/b/g/n/ac Wave 2/ax
SSID Security
WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
Antenna
6 GHz: 5.82 dBi, Omni. 5 GHz: 5.61 dBi, Omni. 2.4 GHz: 4.58 dBi, Omni

Network Specs

WLAN
2,500 clients, 16 SSIDs WPA-TKIP, WPA2 AES, WPA3 SAE, WPA3 Enterprise, 802.1x, 802.11w PMF
Authentication Encryption
Hotspot 2.0 802.􀀀x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS, MAC authentication to local database or external RADIUS
Subscriber QoS
WMM
Fast Roaming
802.11r, OKC, assisted roaming
