Enterprise grade 802.11 Wi-Fi access in outdoor high-density networks. Ideal for 360-degree coverage in Public Wi-Fi, Hospitality, Enterprise Small form factor hides easily. 802.11ac wave2, multi-user MIMO, beam steering, VHT rates, airtime fairness 360-degree antenna coverage UV rated IP67 enclosure Light weight – less than 800g

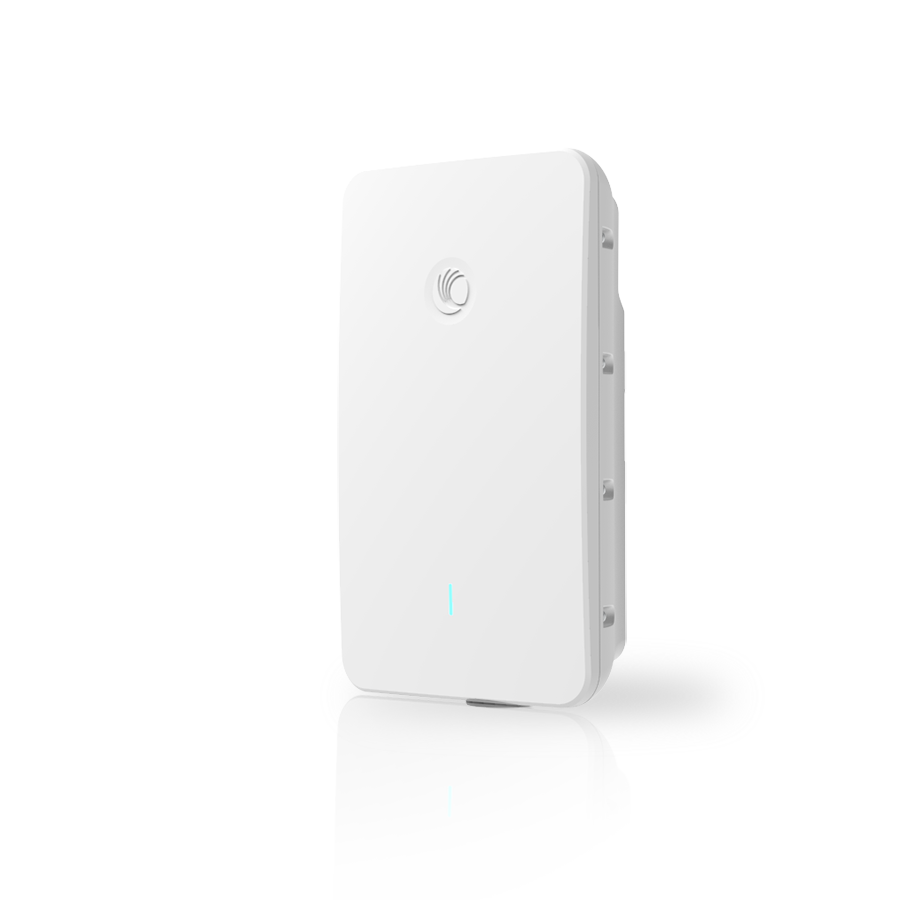

cnPilot e505 Wi-Fi 5 Outdoor Wireless Access Point
Specifications
Access Point Specifications
US-FCC
2400 – 2484 MHz, 5150 – 5250 MHz, 5725 – 5850 MHz
Industry Canada (ISEDC)
2400 – 2484 MHz, 5150 – 5250 MHz, 5725 – 5850 MHz
EU-ETSI
2400 – 2484 MHz, 5150 – 5250 MHz
ROW (individual country limits may apply)
2400 – 2500 MHz, 5150 – 5850 MHz
SSID Security
WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Max PHY Rate
2.4 GHz radio: 300 Mbps 5 GHz radio: 867
Mbps
Mbps
WLAN and Network Specifications
Controller Mode
Controller-less standalone
AutoPilot heterogeneous network
Cloud managed cnMaestro
On-premises cnMaestro VM
AutoPilot heterogeneous network
Cloud managed cnMaestro
On-premises cnMaestro VM
WLAN
256 clients, 16 SSIDs
WPA-TKIP, WPA2 AES, 802.1x
802.11w PMF
WPA-TKIP, WPA2 AES, 802.1x
802.11w PMF
Fast Roaming
802.11r, OKC, Enhanced roaming
Band Steer Load Balance
Yes
Tunnel
L2TP, L2oGRE, PPPoE
