The plenum-rated cnPilot™ e400 with 256-user capacity and up to 16 SSIDs ensures network adaptability to the dynamics of growing demand, with advanced features like airtime fairness, Automatic Channel Scanning (ACS), and high client device speeds with band steering.

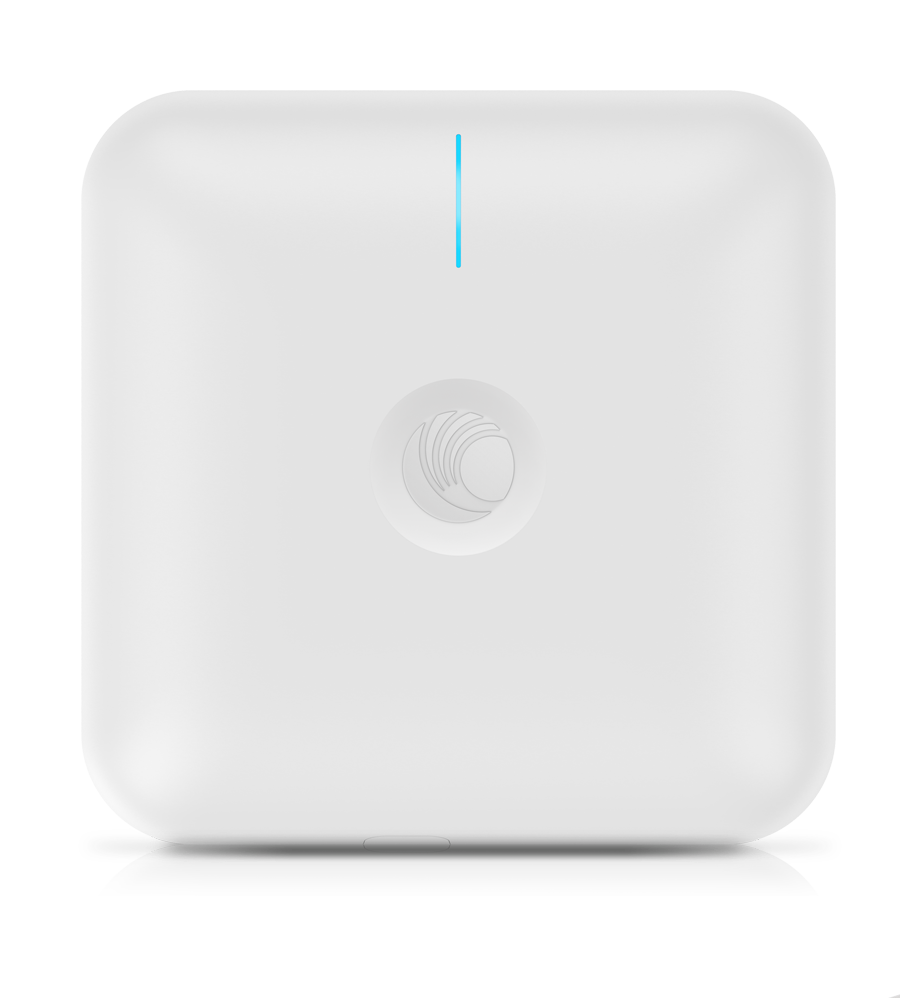

cnPilot e400 Wi-Fi Access Point
Specifications
ACCESS POINT SPECIFICATIONS
Standards
IEEE 802.11a/b/g/n/ac. Others: 802.11 h/d/r/u/w/ Wi-Fi alliance certified
Antenna
2x2 MIMO streams
Range
180 m (650 Ft)
Concurrent Clients
256
Max Data Rates
+1.167 Gpbs
SSID
16 SSIDs across 2 radios
Standards
4.55 dBi (2.4 GHz)/4.25 dBi (5 GHz)
Polarization
5 GHz dual Polarized antenna
Antenna Coverage
Omni (360°)
Ethernet Ports
One (1) x 1 Gigabit Ethernet (10/100/1000 Mbps)
Frequency bands
2.4 GHz: 2400-2484 MHz 5 GHz: 5150-5850 MHz with DFS band support
Power Supply
Standard 802.3af injector (supplied) or any PoE switch
Dimensions (CM)
18 cm x 18 cm x 3 cm
Weight
350g
WIFI FEATURES
Controller modes
• Autonomous Controller-less operations (E.g.: roaming) • Cloud Managed • On-premise virtualized controller
Secure WLAN
WPA-TKIP, WPA2 AES, 802.1x 802.11w (Protected Management Frames)
Hotspot 2.0/Passpoint
Yes
Captive Portal
l • cnMaestro Controller • Stand-alone AP based • Redirection to external RADIUS • Server DNS logging
Scheduled SSID
Turn SSID ON/OFF on a daily/weekly/time of day basis
Guest Access
Yes. With Active Directory Integration
Meshing
Multi-hop meshing supported (3)
Firewall
Yes. NAT logging
