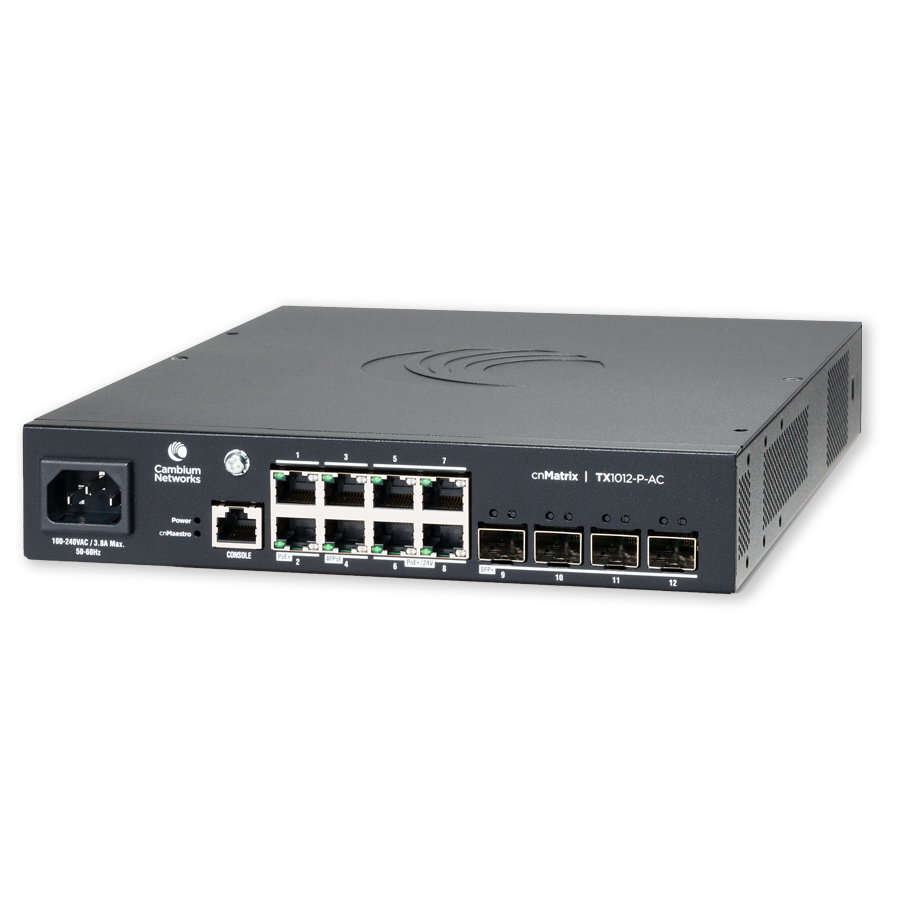

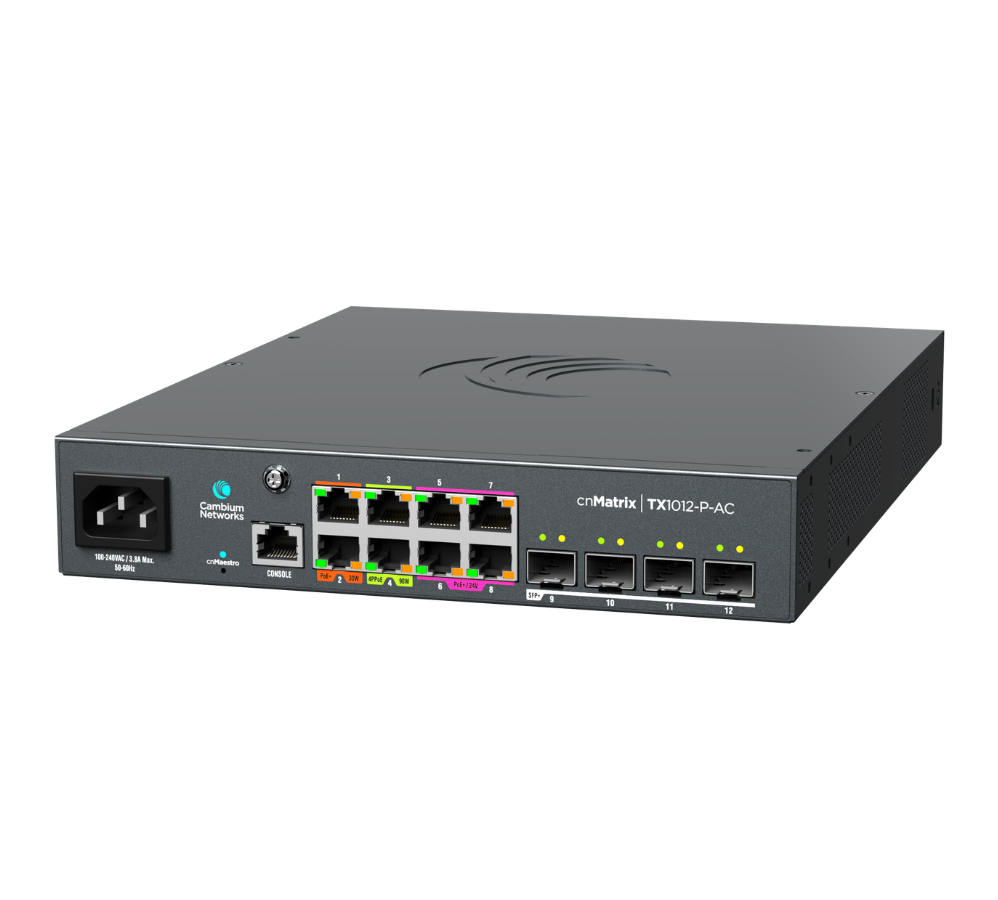

cnMatrix TX1012-P-AC Switch

cnMatrix TX provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE in a single box solution that is easy to install and manage while improving network performance.

Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.

The cnMatrix platform of switches provides:

  • Full Line Rate, non-blocking architecture
  • Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS*
  • Zero-touch deployment of switches makes installation easy
  • Policy Based Automation eliminates manual and time consuming configuration
  • Enhanced Security with automated device profiling and segmentation
  • Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
  • Unified Wired-Wireless access solution

* Feature to be included in a future release.

The cnMatrix TX Series of Switches provides the following addition functionality:

Comprehensive/Intelligent PoE solution

  • 802.3af/at/bt – up to 90W
  • 24V Passive PoE – up to 15W
  • 54V Passive PoE – up to 90W

Available with either AC or DC power supply

All interfaces located on front panel

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The cnMatrix series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 3-Year Limited Lifetime Warranty.

Video: How to Simplify Tower Deployments with Integrated Ethernet Switching

Video: Unboxing the cnMatrix TX 1000 Switch

cnMatrix TX1012-P-AC Switch

Specifications

GENERAL SPECIFICATIONS

Throughput
96 Gbps
Forwarding Rate in Mpps (64 Byte Packets)
120
10/100/1000 Mbps RJ45 Ports
8
10 Gbps Fiber Ports (SFP+)
4
PoE+ Enabled Ports 802.3af/at/bt
8
Low Voltage Passive PoE (24V)
4
High Power 4 PPoE (up to 90W)
2
Serial Console
Yes
Policy Based Automation
Yes

HARDWARE SPECIFICATIONS

Power Supply
260W
PoE Power Budget
200W
802.3af/at/bt PoE (54V)
Ports 1–8
24V Passive PoE - up to 15W
Ports 5–8
54V Passive PoE - up to 90W
Ports 3–4
54V Passive PoE - up to 30W
Ports 1–2, 5–8
Rack Mountable
Yes (Optional Accessory)
DIN Rail Mountable
Yes (Optional Accessory)
Wall Mountable
Yes (Optional Accessory)
Temperature Ranges
-30ºC to 60ºC / Sea level

MANAGEMENT

cnMaestro cloud management
XMS cloud management
Industry standard Command Line Interface (CLI)
Embedded web management (HTTP/HTTPS)
SSH / SSH v2
SNMP v1/v2/v3
Local/remote system logging
Policy Based Automation

LAYER 2 FEATURE SET

802.1s multiple spanning tree
VLAN, Port, Protocol, 802.1q
802.1d
802.1x authentication
Auto MDI/MDIX
BPDU Guard, Root Guard

LAYER 3 FEATURE SET

Inter-VLAN Routing
Static ARPs
Static Routes
DHCP Relay
Dynamic Routing – RIPv1/v2
Dynamic Routing – OSPFv2
Route Redistribution

QUALITY OF SERVICE

ACL mapping and marking of ToS/DSCP (COS)
ACL mapping marking of 802.1p
ACL mapping to priority queue
DiffServ support
Honoring DSCP and 802.1p (CoS)
Traffic shaping/metering

TRAFFIC MANAGEMENT

ACL-based inbound rate limiting policies
Broadcast, multicast and unknown unicast rate limiting
Inbound rate limiting per port
Outbound rate limiting per port/queue

SECURITY

802.1x authentication
MAC authentication
DHCP snooping
RADIUS authentication/authorization
Radius/Tacacs/Tacacs+
Authentication, Authorization, and Accounting (AAA)
Secure shell
Secure copy (SCP)*
Local username/password
* Feature to be included in a future release.
