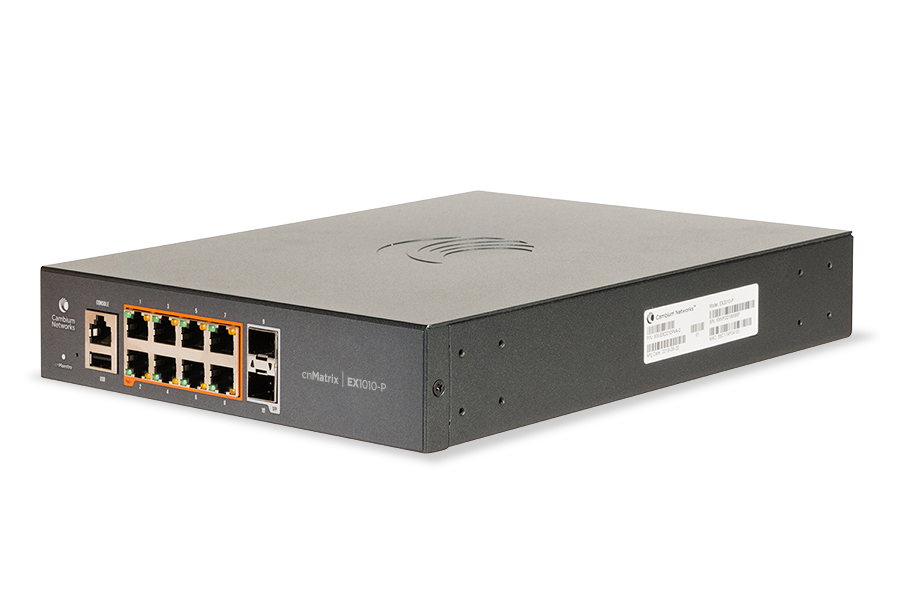

cnMatrix EX1010-P Switch

20 Gbps throughput, 8 PoE enabled ports, 8 10/100/1000 ports, 2 SFP Uplink ports

The cnMatrix platform of switches provides:

  • Full Line Rate, non-blocking architecture
  • Easy and simple, free cloud (or on premise) management with cnMaestro™
  • Zero-touch deployment of switches makes installation easy
  • Policy Based Automation eliminates manual and time consuming configuration
  • Enhanced Security with automated device profiling and segmentation
  • Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
  • Unified Wired-Wireless access solution

The cnMatrix series of fully managed switches delivers full Layer 2 capabilities with enhanced access security. These switches come with a 5-Year Limited Lifetime Warranty.

cnMatrix EX1010-P Switch

Specifications

GENERAL SPECIFICATIONS

Throughput
20 Gbps
Forwarding Rate in Mpps (64 Byte Packets)
120
PoE+ Enabled Ports (802.3af/at)
8
10/100/1000 Ports
8
Uplink ports
2 SFP
Internal fans
Fanless
Policy Based Automation
Yes

HARDWARE SPECIFICATIONS

Power Supply
100-240 VAC
Max Switch Power (WITH TRAFFIC)
10.54 W
MTBF (Hours)
338,917
Weight
1.99 kg (4.375 lb)
Dimensions
21 x 4.4 x 25 cm (8.26 x 1.75 x 9.85 in)
CPU Speed
800 MHz
LEDs Per Port
Link/Activity, PoE
PoE+ Power Budget
75 W
PoE+ Voltage
54 V
PoE Max Power Per Port
30 W
Rack Mountable
Yes 1U
Temperature Ranges
0°C to 50°C (32°F to 122°F)
Operating Humidity
55° at 95% RH
Storage Temperature
-40°C to 70°C (-40°F to 158°F)

MANAGEMENT

t cnMaestro (cloud management)
Industry standard Command Line Interface (CLI)
DHCP Client
Embedded web management (HTTP/HTTPS)
Embedded DHCP server
USB file management and storage
SSH / SSH v2
SNMP v1/v2/v3
DHCP relay
Policy Based Automation

LAYER 2 FEATURES

Authentication, Authorization, and Accounting (AAA)
Broadcast/Multicast/Unknown unicast storm recovery
DHCP Snooping
IGMP Snooping Querier
Independent VLAN Learning (IVL) support
Jumbo Ethernet frame support
Port MAC locking
Port mirroring
Protected ports
Static MAC filtering

LAYER 3 FEATURES

Inter-VLAN Routing
Static ARP
Static Routes
RFC 2131 – DHCP Relay

QUALITY OF SERVICE

ACL mapping and marking of ToS/DSCP (COS)
ACL mapping to priority queue
Honoring DSCP and 802.1p(CoS)
Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP

TRAFFIC MANAGEMENT

nt ACL-based inbound rate limiting policies
Broadcast, multicast and unknown unicast rate limiting
Inbound rate limiting per port
Outbound rate limiting per port/queue

SECURITY

Permit/deny actions for inbound IP and Layer-2 traffic classification based on:
Time-Based ACL
Source/Destination IP address
TCP/UDP Source/Destination port
IP Protocol Type
Type of Service (ToS) or differentiated services (DSCP) field
Source/Destination MAC address
EtherType
IEEE 802.1p user priority (outer and/or inner VLAN tag)
VLAN ID (outer and/or inner VLAN tag)
RFC 1858—Security Considerations for IP Fragment Filtering
