The cnMatrix platform of switches provides:

  • Full Line Rate, non-blocking architecture
  • Easy and simple, free cloud (or on premise) management with cnMaestro™
  • Zero-touch deployment of switches makes installation easy
  • Policy Based Automation eliminates manual and time consuming configuration
  • Enhanced Security with automated device profiling and segmentation
  • Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
  • Unified Wired-Wireless access solution

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3000 series offers SFP+ (10 Gbps) fiber uplink ports. The EX3000 series also offers dual remove-able power supplies and features up to 60W of PoE per port. These switches come with a 5-Year Limited Lifetime Warranty

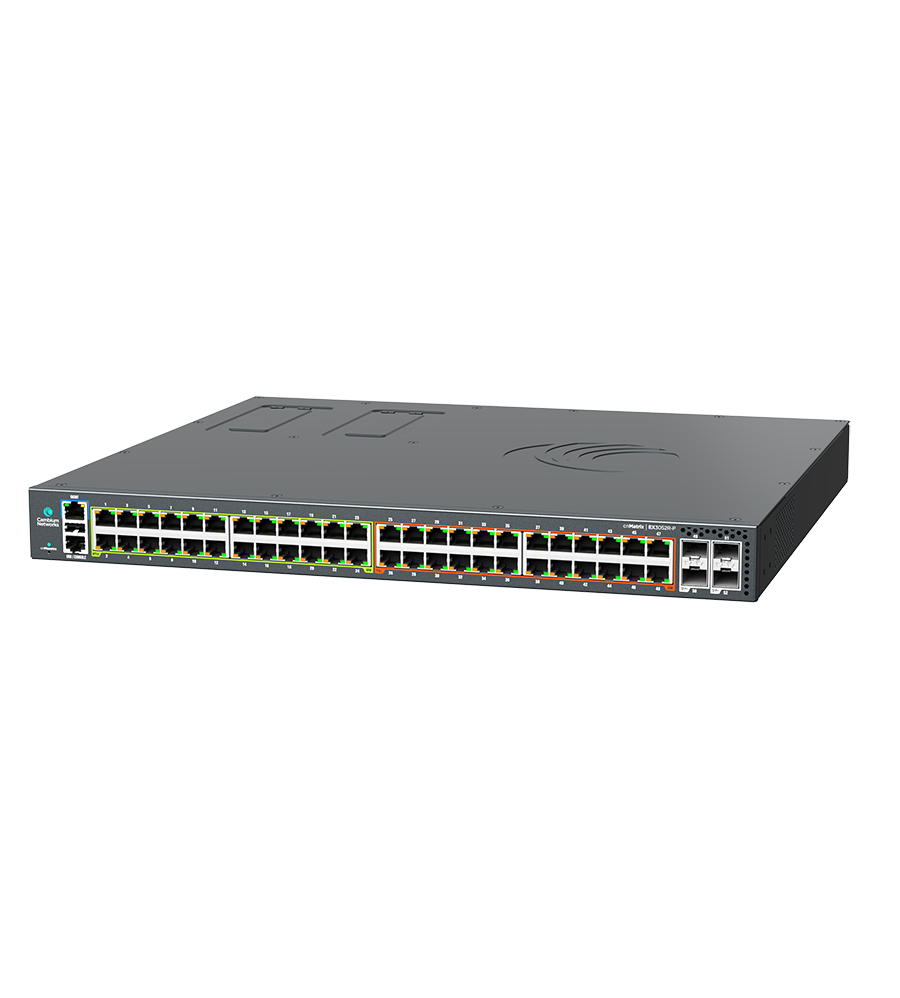

cnMatrix EX3052R-P

Specifications

Features

Throughput
176 Gbps
Forwarding Rate in Mpps (64 Byte Packets)
120
10/100/1000 Ports
48
Uplink Ports
4 SFP+
2.5 G Ports
n/a
PoE+ Enabled Ports 802.3af/at/bt (30W)
24
PoE+ Enabled Ports 802.3af/at/bt (60W)
24

Hardware Specifications

Power Supply
CRPS dependant
Max Switch Power (with traffic)
82.5W
MTBF (Hours)
471.517
Weight
4.904 Kg (10.81 lbs)
Dimensions
4.4 x 39.4 x 44.15 cm (1.73 x 15.51 x 17.38 in)
CPU Speed
800 MHz
LEDs Per Port
Link/Activity, PoE
PoE+ Power Budget
CRPS dependant
