The cnMatrix platform of switches provides:

  • Easy and simple, free cloud (or on premise) management with cnMaestro™
  • Zero-touch deployment of switches makes installation easy
  • Enhanced Security with automated device profiling and segmentation
  • Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
  • Unified Wired-Wireless access solution

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3024F is a fiber aggregation switch that has all 10 Gbps SFP+ fiber ports. It also has dual internal power supplies for additional robustness and redundancy. These switches come with a 5-Year Limited Lifetime Warranty

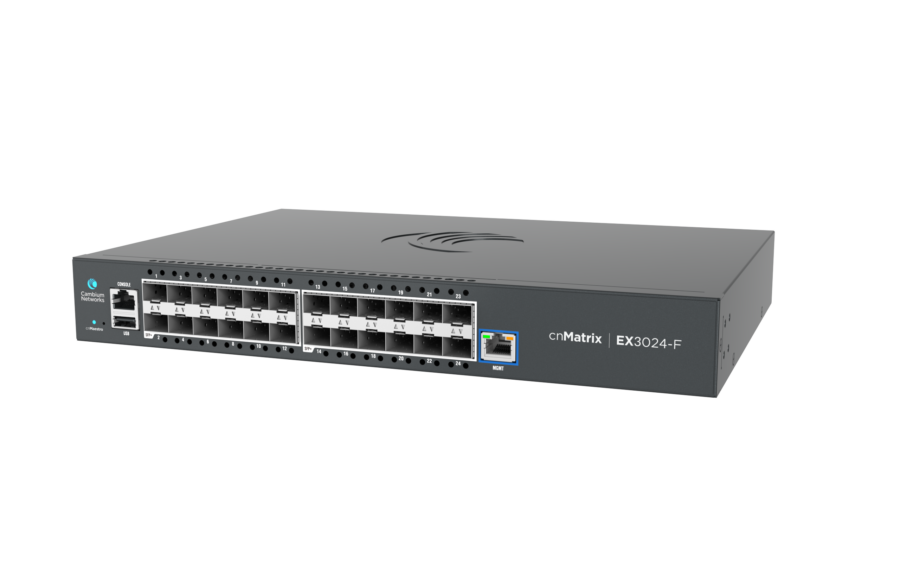

cnMatrix EX3024F Fiber Aggregation Switch

Specifications

Features

Throughput
480 Gbps
Forwarding Rate in Mpps (64 Byte Packets)
120
10/100/1000 Ports
n/a
2.5 G Ports
n/a
Fiber Ports
24 SFP+
PoE+ Enabled Ports 802.3af/at/bt (30W)
n/a
PoE+ Enabled Ports 802.3af/at/bt (60W)
n/a

Hardware Specifications

Power Supply
Dual internal 120W
Max Switch Power (with traffic)
75W
MTBF (Hours)
928,678
Weight
3 kg
Dimensions
44.4 x 33.0 x 23.05 cm
CPU Speed
1.4 GHz
LEDs Per Port
Link/Activity
PoE+ Power Budget
n/a

cnMatrix EX3024F Fiber Aggregation Switch
