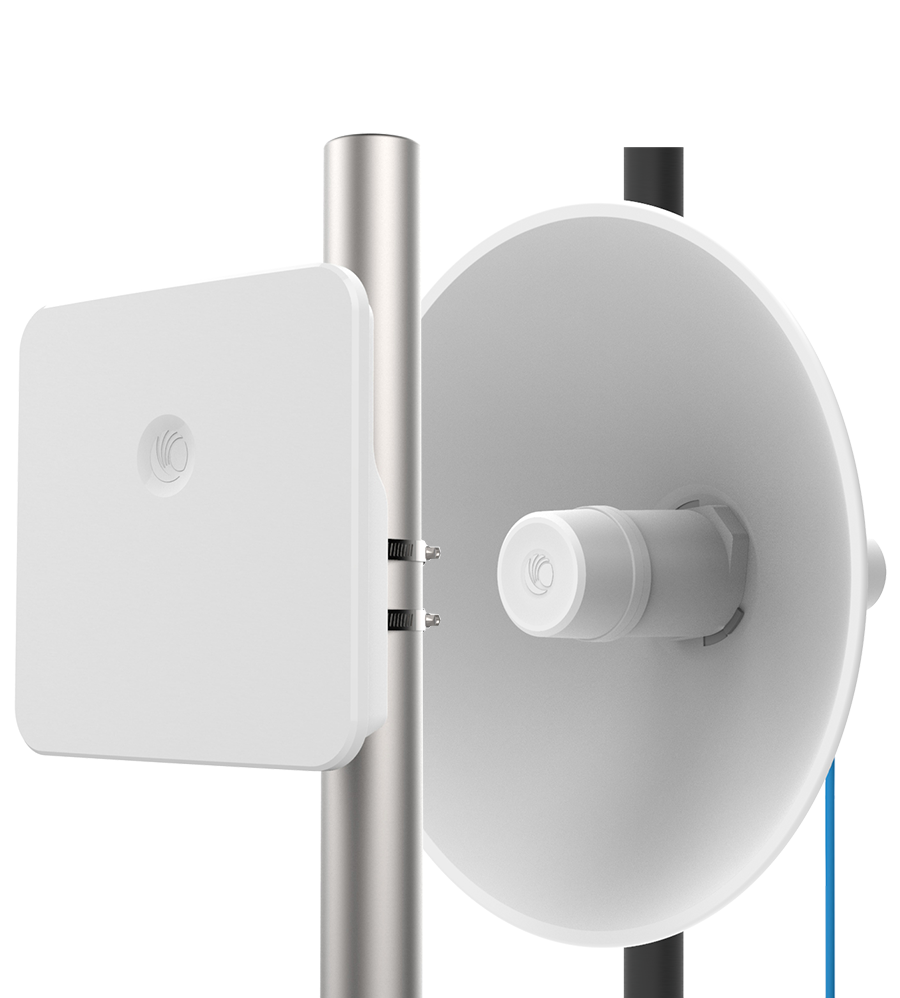

The cnRanger™ Subscriber Modules (SM) are highly compact and cost-effective LTE Customer Premise Equipment (CPE) designed for ease of installation, onboarding, management, and monitoring. Available as 2.5 GHz Cat 4 integrated flat panel, or a High Gain integrated parabolic reflector dish (for either 2.5 GHz or 3 GHz (including CBRS). These SMs optimize range and coverage, while removing the complexity normally associated with LTE equipment. The SMs accept standard LTE SIM cards (including cnRanger SIMs) and are designed with robust quality to withstand the elements. The SMs ship with a bundled POE injector.
cnRanger SM
Specifications
SPECTRUM
Channel Spacing
1 MHz as specified in the BBU
Frequency Range
LTE Band 38: 2570-2620 MHz, LTE Band 40: 2300-2400 MHz, LTE Band 41: 2496-2690 MHz
Channel Width
5 MHz (future release), 10 MHz, 15 MHz (future release), 20 MHz
Protocols Used
IPv4, UDP, TCP, IP, ICMP
Network Management
HTTP, HTTPS, SSH, cnMaestro
MTU
1500
INTERFACE
MAC (Media Access Control) Layer
TDD-LTE Advanced Release 10
PERFORMANCE
PPS
TBD
HARQ
Yes
Ultimate Sensitivity
-98 dBm
