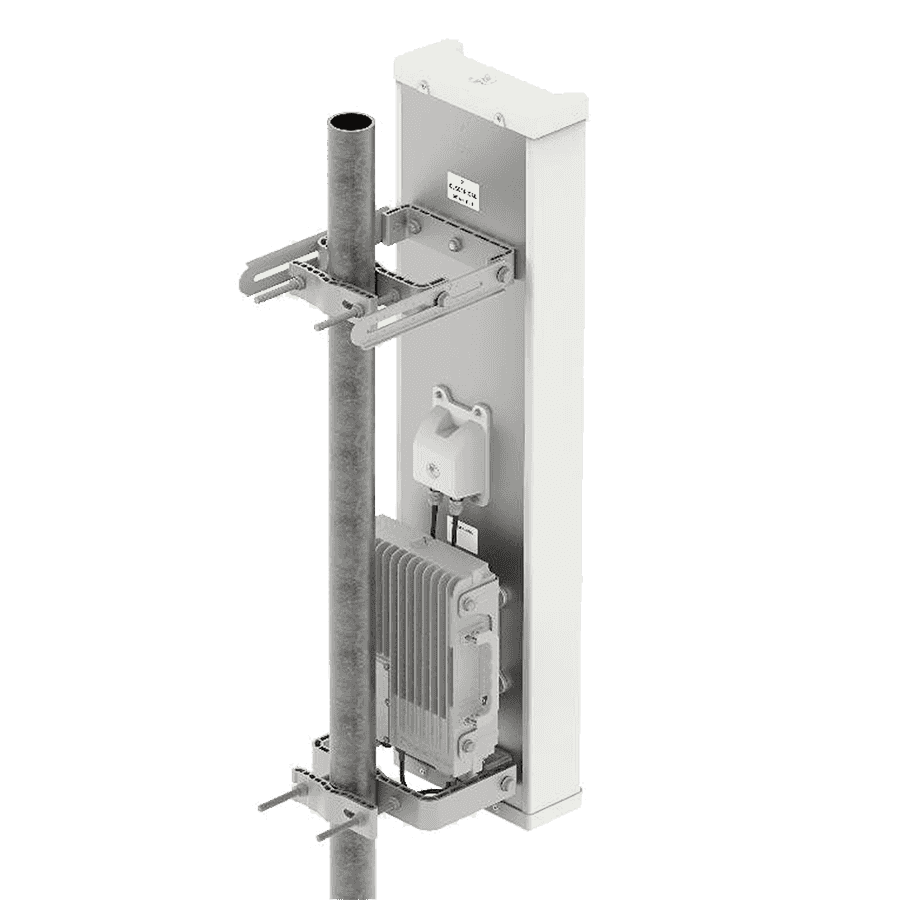

The cnRanger 2.5 GHz sector antenna provides up to 16 dBi gain and can be utilized for 90° coverage or 120° with 3 dBi roll off. Includes RF cables and RRH direct-mount hardware
cnRanger 90 Sector Antenna
Specifications
Antenna
Frequency Range
2300 MHz to 2700 MHz
Gain
16 dBi
VSWR
2:1 max
3 dB Beamwidth - Azimuth
90°
6 dB Beamwidth - Azimuth
120°
3 dB Beamwidth - Elevation
7°
Pattern Roll Off at Sector Edge
12 dB
