Up to 300 Mbps in a 40 MHz channel. Frequency range is 5.7 – 6.3 GHz

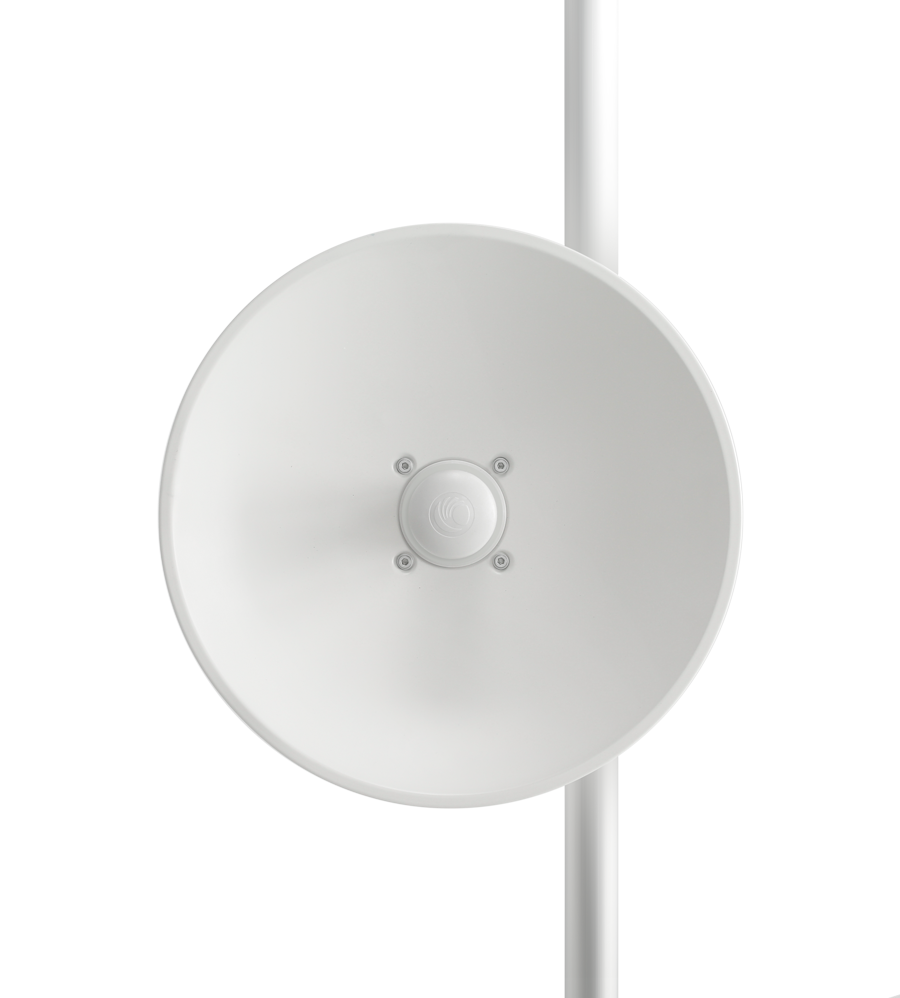

6 GHz PMP 450b6 High Gain Subscriber Module
Specifications
SPECTRUM
Channel Spacing
Configurable on 2.5 MHz increments
Frequency Range
5725- 6300 MHz
Channel Width
5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz
INTERFACE
MAC (Media Access Control) Layer
Cambium Networks proprietary
Physical Layer
2x2 MIMO OFDM
Ethernet Interface
100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant
Protocols Used
IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Network Management
IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro
MTU
1700 bytes
VLAN
802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
SECURITY
Encryption
FIPS-197 128-bit AES, 256-bit AES (optional)
