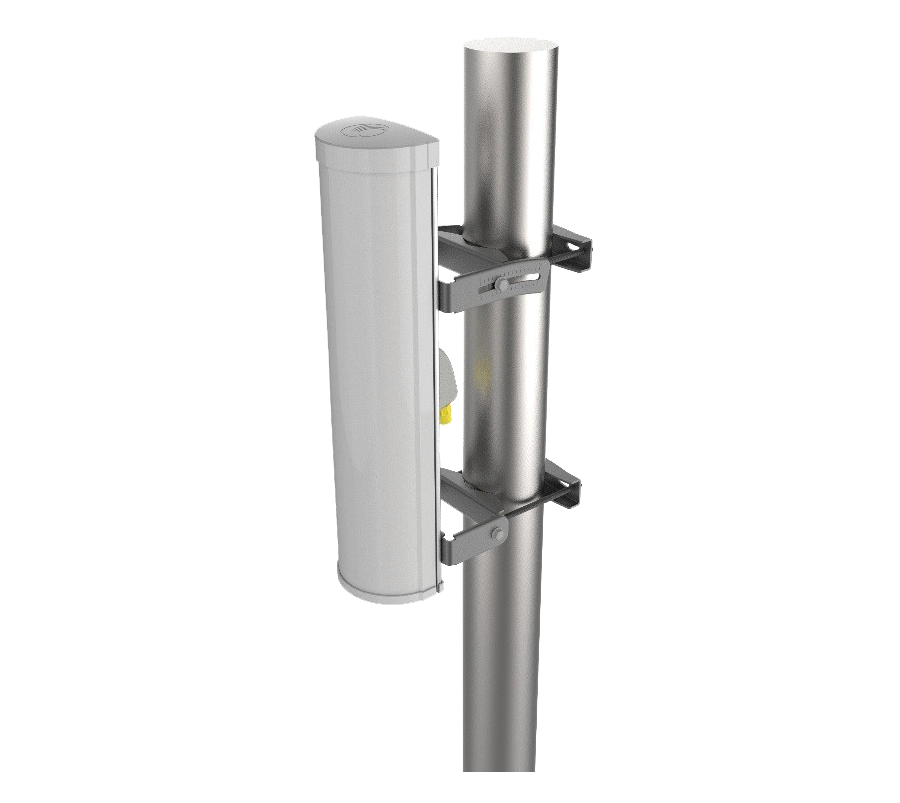

4.9 to 5 GHz Dual Pole 90 Degree Sector Antenna

Sector antenna solution for PTP 670/700 High Capacity MultiPoint (HCMP) radios that enables network operators to connect up to eight PTP radios to a single HCMP access point. Especially well-suited to high-density networks requiring frequency re-use and wide-band spectrum coverage, as well as video surveillance and mission critical infrastructure backhaul applications. Compatible with connectorized PMP products.

4.9 to 5 GHz Dual Pole 90 Degree Sector Antenna

Key Advantages

High Capacity MultiPoint (HCMP)

Compatible with the PTP 670/700 HCMP configuration, which allows up to eight remote PTP radios to connect to a single HCMP access point.

Frequency Reuse

Designed for ABAB channel re-use (two channels covering four sectors), this sector antenna has 35dB front to back ratio including a wide aperture in the rear-facing direction

Channel Flexibility

Constant gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance.

Consistent Coverage

The excellent null fill capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector.

Designed for the Installer

Small compact design, with easy mounting.

Predictable Performance

This sector antenna is integrated into Cambium Networks LINKPlannerTM and the 3D model shows coverage at all elevations and across the azimuth.
