Available in 2.4 GHz the PMP 450 Access Point (AP) delivers consistent and exceptionally high throughput – more than 200 Mbps per sector and more than 1 Gbps per tower.

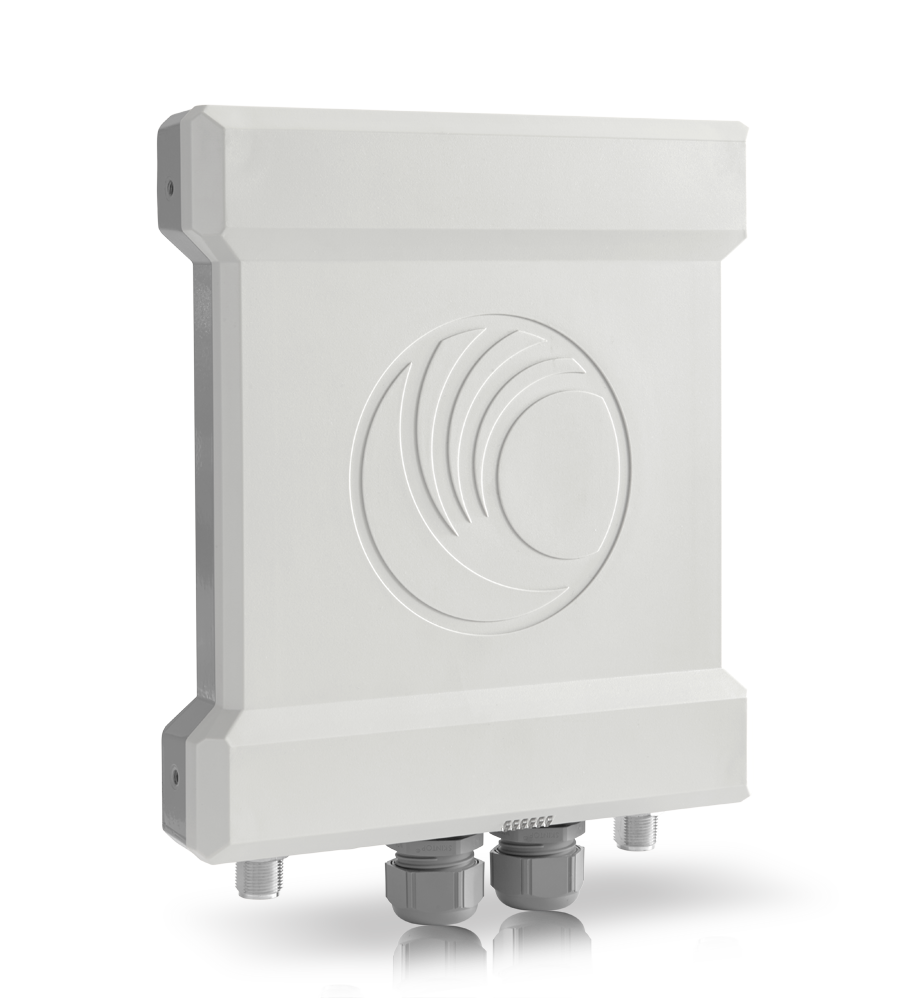

2.4 GHz PMP 450 Connectorized Fixed Wireless Access Point
Specifications
INTERFACE
PHYSICAL LAYER
2x2 MIMO OFDM
ETHERNET INTERFACE
10/100/1000BaseT, half/full duplex, rate auto negotiated (802.3 compliant)
PROTOCOLS USED
IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
NETWORK MANAGEMENT
HTTP, HTTPS, Telnet, FTP, SNMP v3 (add line between this & v LAN)
SPECTRUM
FREQUENCY RANGE
2400 - 2483.5 MHz
CHANNEL WIDTH
5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz
CHANNEL SPACING
Selectable on 2.5 MHz increments
PERFORMANCE
SUBSCRIBERS PER SECTOR
UP TO 238
ARQ
Yes
MAXIMUM DEPLOYMENT RANGE
Up to 40 miles
LINK BUDGET
ANTENNA BEAM WIDTH
2.4 GHz - 60° Sector (Dual Slant) 3 GHz - 90° Sector (Dual Slant)
TRANSMIT POWER RANGE
-30 TO +22 dBm (combined, to EIRP limit by region) (1 dB interval) (+25 dBm FOR 3 GHz)
PHYSICAL
ENVIRONMENTAL
IP67, IP66
TEMPERATURE
-40°C TO +60°C (-40°F TO +140°F), 0-95% non-condensing
WEIGHT
2.5 kg (5.5 lbs)
DIMENSIONS (HxWxD)
27 x 21 x 7 cm (10.6” x 8.3” x 2.8”)
SECURITY
ENCRYPTION
56-bit DES, FIPS-197 128-bit AES
