cnReach N500 Narrowband Fixed Wireless IO Expander

Extend broadband and narrow-band networks with the additional I/O needed for process control and instrumentation applications.

The I/O expander provides the connectivity necessary to interface directly with sensors as well as any serial or Ethernetbased data sources.

The cnReach™ IO Expander has a rich set of IO features (2 x Ethernet, 2 x Serial and 8 General-purpose IO pins) that increases the number of applications and data sources that can be served by wireless networks.

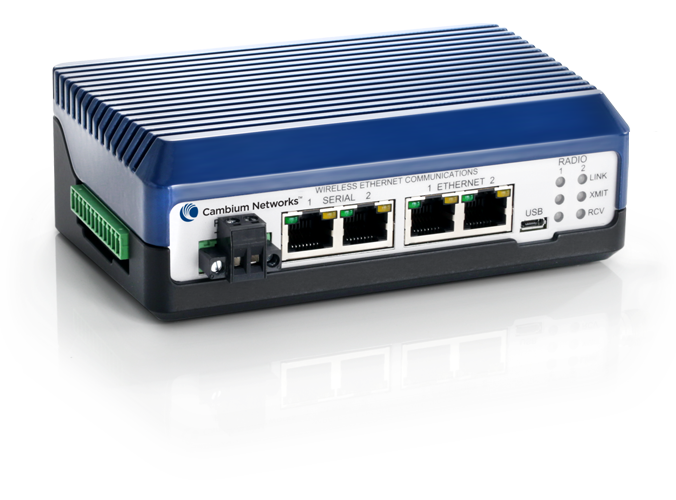

cnReach N500 IO Expander

Key Features

  • Extensive I/O capabilities easing the transition from serial to all-IP networks with two serial ports, two Ethernet ports, and analog/digital I/O built-in
  • 8 analog/digital I/O Channels, all supporting analog and digital input. Analog inputs with 4 to 20 mA, digital input with built-in pull-up resistors, and digital outputs capabile of sinking 2A
  • Compatible with any layer 2 Ethernet device such as PMP 450i, PTP 450i, PTP 670 or other cnReach radios
  • Can be daisy-chained together to support more I/O as needed
  • I/O capabilities designed to interface in real-world industrial applications with precision analog in and out, high current digital inputs and counting features.
  • Internal pull-up and pull-down resistors simplify interfaces to common dry-contact DIs and 4-20 mA AIs and AOs
  • Serial connectivity via TCP terminal server or client; flexible configuration to integrate with most serial-based devices in the field today
  • Supported by cnMaestro Network Management software for monitoring the status of entire networks carrying traffic across sensors
  • All of these I/O features are available as a built-in option on cnReach radio devices as well

cnReach N500 Narrowband Fixed Wireless IO Expander

Specifications

MANAGEMENT

Web-based interface via HTTP/HTTPS
Remote management via SNMP
cnMaestro integration
Support for configuration files, remote software upgrades

DATA CAPABILITIES

Packet handling
Layer 2 bridge, layer 3 static routes
VLAN support

INTERFACES

Ethernet Interfaces
2 x RJ-45
10/100BaseT, full duplex, rate auto negotiated (802.3 compliant)
Serial Interfaces
2 x RJ-45, RS-232/422/485, up to 230.4 kbps
Analog/Digital I/O
12 pins for 8 IO channels and 4 grounds (analog input/output and digital input/output)

POWER

Input
10-32VDC with reverse polarity protection
Power Consumption
293 mA

PHYSICAL

Dimensions
168 x 876 x 466 mm (6.625 x 3.45 x 1.835 in)
Weight
0.70 kg (1.54 lb)

ENVIRONMENTAL

Operating Temperature
-40C to +70C
Humidity
95% operating humidity @ 60C non-condensing
