cnReach N550 450 MHz FCC Narrowband Fixed Wireless

Combining cnReach’s licensed and unlicensed narrow-band radios with Cambium Networks’ broadband technologies, industrial organizations are delivering end-to-end IIOT solutions today.

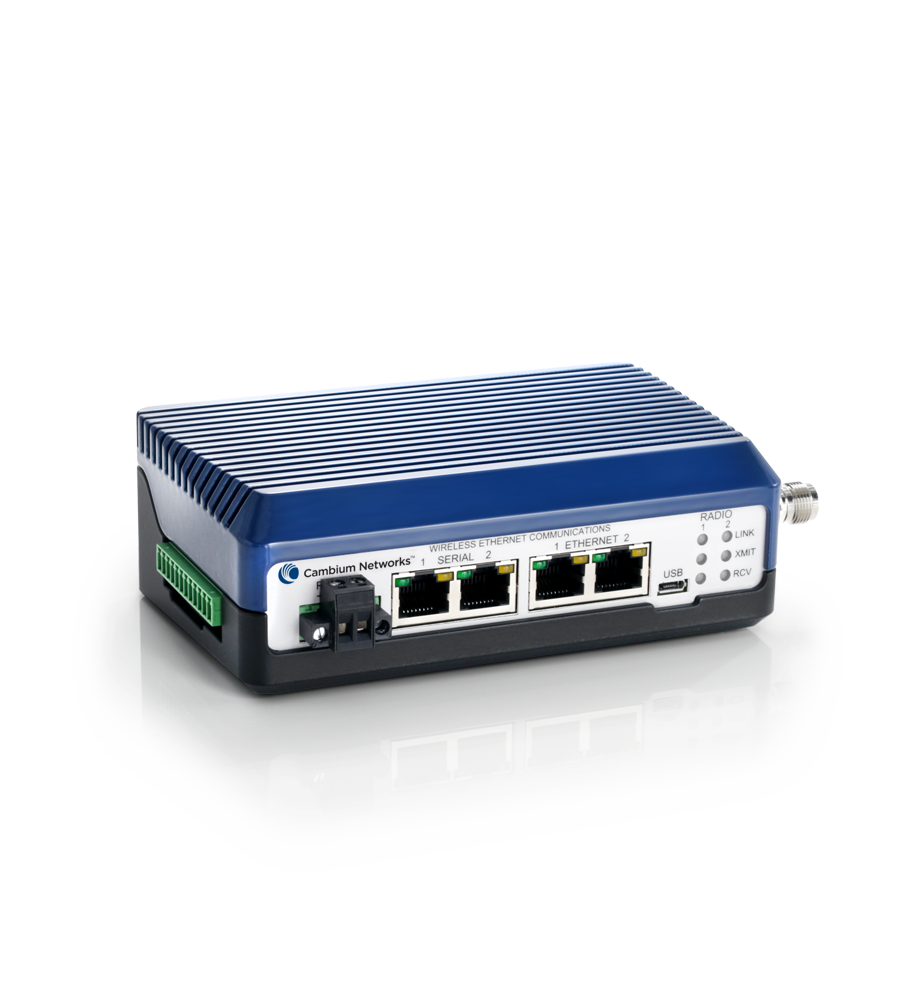

cnReach™ N550 450 MHz FCC narrowband fixed wireless radio enables connectivity in the most diverse environments.

The N550 450 MHz FCC model provides reliable licensed band connectivity with extensive I/O capabilities to ease migration to all-IP networks. With dual radio options, a 5 W output power and adaptive modulation.

cnReach N500 220 MHz, cnReach 450 MHz ETSI RED, cnReach N500 700 MHz, cnReach N500 450 MHz FCC, cnReach N500 900 MHz

Key Features

  • Licensed 450 MHz (406–430 MHz and 450–470 MHz); (also available in an ETSI RED model)
  • Up to 8W transmit (39 dBm) in FCC
  • Point-to-point, Point-to-multipoint, and Back-to-back Relay configurations (dual radios)
  • Adds higher performance with reduced headers, low overhead mode, QoS support and payload compression
  • Highly reliable communications with access point synchronization and adaptive modulation
  • Single and dual radio configurations for advanced back-to-back relay topologies
  • Extensive I/O capabilities easing the transition from serial to all-IP networks with two serial ports, two Ethernet ports, and optional analog/digital I/O built-in
  • Sophisticated network planning with LINKPlanner, a nocharge planning tool enabling network designers to predict both capacity and availability of networks crossing all of Cambium’s technologies
  • Supported by cnMaestro™ Network Management software for monitoring the status of entire networks
  • Fully compatible and interoperable with N500 450 MHz radios

cnReach N550 450 MHz FCC Narrowband Fixed Wireless

Specifications

RADIO SPECIFICATIONS

UL
Approved
FCC
406–430 MHz: Z8H89ft0033
450–470 MHz: Z8H89ft0034
Frequency Range
406–430 MHz and 450–470 MHz
Output Power
50mW to 8W (10 dBm to 39 dBm) for FCC
Step Size
10mW
Modulations
MSK / QPSK / 8PSK / 16QAM / 32QAM
Capacity
9.6 kbps to 56.7 kbps RF data rate; up to 30 kbps UDP throughput in 12.5 kHz channels
Channel Bandwidths
12.5 kHz (25 / 50 / 100 kHz available regulations permitting)
Range
Up to 110 km / 70 miles

DATA CAPABILITIES

Packet Handling
Layer 2 bridge, Layer 3 static routes, VLAN support
Data Encryption
128/256-bit AES

Management

Web-based Interface via HTTP/HTTPS
LINKPlanner integration (capacity and availability planning)
Remote Management via SNMP
cnMaestro™ integration
Support for configuration files, remote software upgrades
Built-in diagnostic tools via web interface such as RF Ping and RF throughput

HARDWARE SPECIFICATIONS

Ethernet Interfaces
2 x RJ-45
10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant)
Serial Interfaces
2 x RJ-45
RS-232/422/485, up to 230.4 kbps

PHYSICAL

Dimensions
168 x 876 x 466 mm (6.625 x 3.45 x 1.835 in)
Weight: Single-Radio Configuration
0.70 kg (1.54 lb)
Weight: Dual-Radio Configuration
0.73 kg (1.61 lb)
DIN Rail Mount
Optional

ENVIRONMENTAL

Operating Temperature
-40ºC to 75ºC (-40ºF to 167ºF)
Humidity
UL-Approved to Class 1 / Div 2
