Indoor or Outdoor ONT

FTTx Reimagined: Simple to Acquire, Deploy and Manage

Optical network terminals (ONTs) designed to deliver exceptional broadband experiences at a low total cost of ownership (TCO).

Indoor and outdoor ONTs deliver multi-gigabit symmetric speeds and support multiple PON technologies, including GPON and XGS-PON options.

Quickly and easily deploy gigabit fiber connectivity to your customers. With simplified zero-touch configurations and a user-friendly unified management system, cnMaestro™, your team can focus on growth instead of managing multiple complex systems. Delight your users with a fiber network supported by a portfolio of fixed wireless, Wi-Fi technologies and Quality of Experience (QoE) and security services.

Read the Cambium Networks Fiber Press Release

Features and Benefits

  • Simplified zero-touch deployments
  • Premium quality supported systems

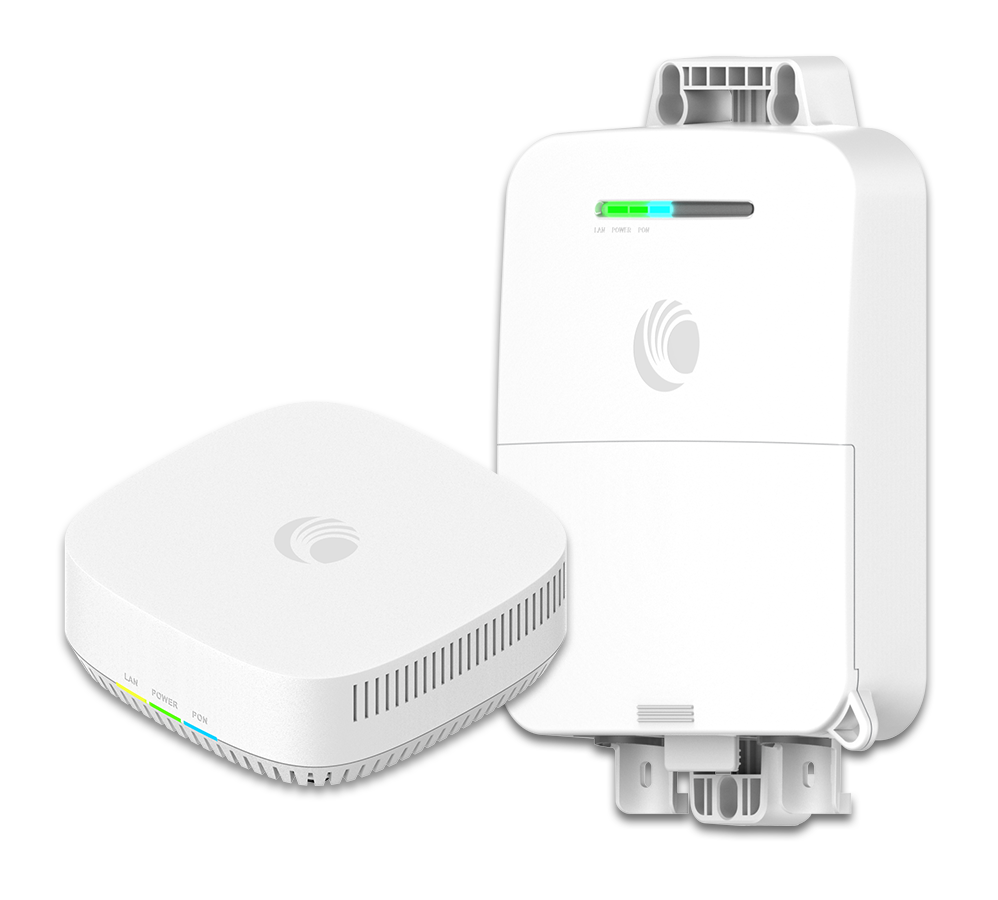

  • Indoor ONT or Outdoor PoE powered ONT
  • Robust hardware with quality support

Add Future-Proof Fiber to Your Network

Leverage the optimal combination of fixed wireless and fiber to best fit your business. Deliver multi-gigabit symmetrical services in a Combo (GPON/XGS-PON) OLT managed with a single pane of glass.

Learn about our special introductory
offer on fiber solutions

Join the fiber conversation on the Cambium Networks Community

Video: Unboxing the Indoor Fiber ONT

Video: Unboxing the Outdoor Fiber ONT

See what Mike Dano of Light Reading says about Cambium Fiber Combo PON

Read the Article

Simplify the ordering, deployment, & management, of carrier-grade FTTx technology.

Watch the Webinar
View list of Fiber Accessories

Indoor or Outdoor ONT

Specifications

Gigabit SGX00 Indoor ONT

PON
2.488 Gbps / 1.244 Gbps D: 1290~1330nm, U: 1480~1500nm TX: Class B+ 0.5 ~ 5 dBm RX Sen: -28 ~ -8 dBm
LAN
LAN 10/100/1000 Base-T Ethernet
Dimensions
4.15 x 4.15 x 1.3 in (105 x 105 x 33mm)
Environment
Indoor 32°~113ºF (0°~45ºC) 10 to 95% non-condensing
Power
12V DC 1A included

Multi-gigabit SXX00 Indoor ONT

PON
GPON 9.95 Gbps / 9.95 Gbps D: 1575~1580nm, U: 1260~1280nm TX: Class B+ 4 ~ 9 dBm RX Sen: -28 ~ -8 dBm
LAN
10/100/1000/2500 Base-T Ethernet
Dimensions
4.15 x 4.15 x 1.3 in (105 x 105 x 33mm)
Environment
Indoor 32°~113ºF (0°~45ºC) 10 to 95% non-condensing
Power
12V DC 1A included

Gigabit SGT00 Outdoor ONT

PON
2.488 Gbps / 1.244 Gbps D: 1290~1330nm, U: 1480~1500nm TX: Class B+ 0.5 ~ 5 dBm RX Sen: -28 ~ -8 dBm
LAN
10/100/1000 Base-T Ethernet
Dimensions
8.8 x 12 x 3.14 in (224 x 305 x 80mm)
Environment
IP55 outdoor -22°~140ºF (-30°~60ºC) 10 to 95% non-condensing
Power
30V DC 0.5A Cambium PoE included standard polarity PoE supported

Multi-gigabit SXT00 Outdoor ONT

PON
GPON 9.95 Gbps / 9.95 Gbps D: 1575~1580nm, U: 1260~1280nm TX: Class B+ 4 ~ 9 dBm RX Sen: -28 ~ -8 dBm
LAN
10/100/1000/2500 Base-T Ethernet
Dimensions
8.8 x 12 x 3.14 in (224 x 305 x 80mm)
Environment
IP55 outdoor -22°~140ºF (-30°~60ºC) 10 to 95% non-condensing
Power
30V DC 0.5A Cambium PoE included standard polarity PoE supported
