For high interference environments.

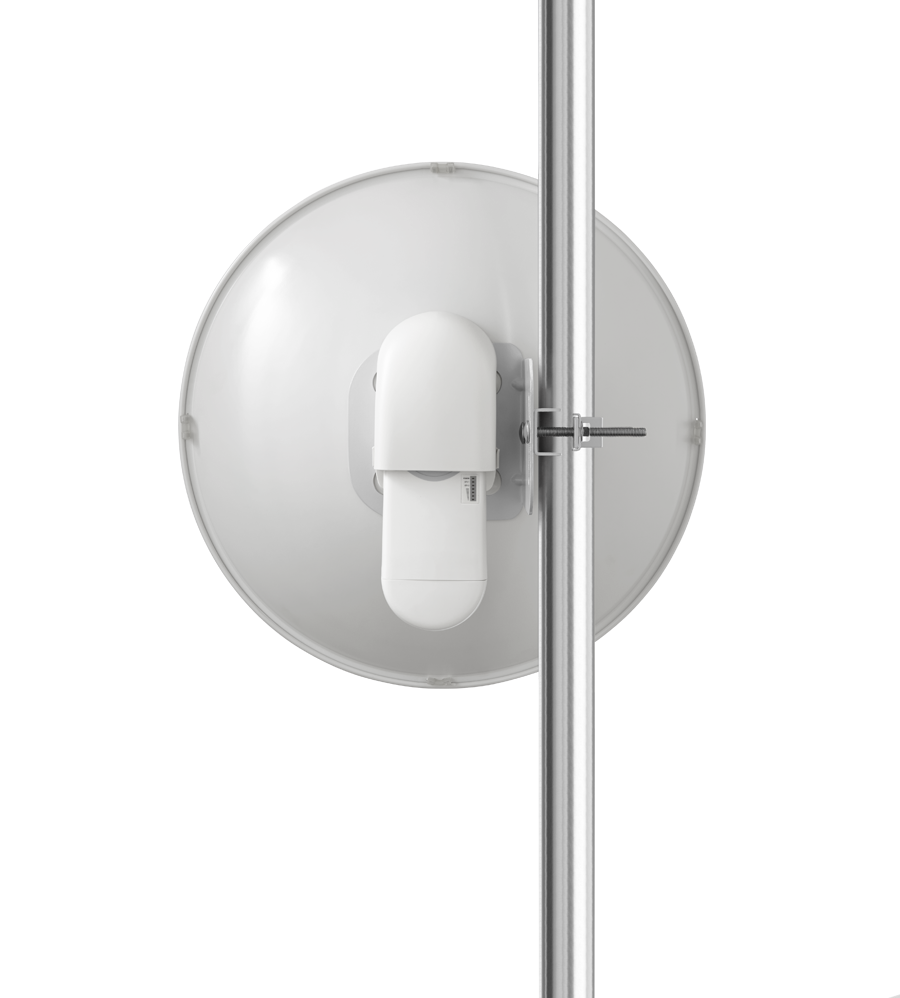

The ePMP™ Force 110 high gain integrated solution enhances range (25 dBi antenna with 30 dBm of transmit power) and improves throughput (up to 150 Mbps of real user data). The Flexible Mode of operation ensures robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and exceptionally low 6 ms latency. ePMP Force 110 is comprised of ePMP 1000 Connectorized Radio and ePMP 110A-525 Dish.

SPECTRUM

Channel Spacing

Configurable on 5 MHz increments

Frequency range

5 GHz 5150 – 5970 MHz (exact frequencies as allowed by local regulations)

Channel Width

5, 10, 20 or 40 MHz

INTERFACE

Physical Layer

2x2 MIMO/OFDM

Ethernet Interface

100/1000 BaseT, rate auto negotiated (802.3af compliant)

Protocols Used

IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH

Network Management

IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™

PERFORMANCE

Nominal Receive sSnsitivity (w/FEC) @ 20MHz Channel

MCSO = -93 dBm to MCS15 = -69 dBm (per branch)

Nominal Receive Sensitivity (w/FEC) @ 40MHz Channe

MCS0 = -90 dBm to MCS15 = -66 dBm (per branch)

Modulation Levels (Adaptive)

MCS0 (BPSK) to MCS15 (64QAM 5/6)

Quality of Service

Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority

PHYSICAL

Surge Suppression

1 Joule Integrated

Environmental

IP55

Temperature

-30°C to +60°C (-22°F to +140°F)

Weight

4.1 kg (9 lbs)

Dimensions (Dia x Depth)

47 cm x 27 cm (18.5 in x 10.6 in)

Pole Diameter Range

5.7cm -7.6cm (2.25in - 3in)

SECURITY

Encryption

128-bit AES (CCMP mode)
