The ePMP™ MP 3000 is Cambium Networks’ MicroPOP solution for WISPs and enterprise network operators. The MicroPOP MP 3000, part of the ePMP portfolio, injects additional capacity where it is needed most and extends network coverage in a cost-effective, lightweight manner.

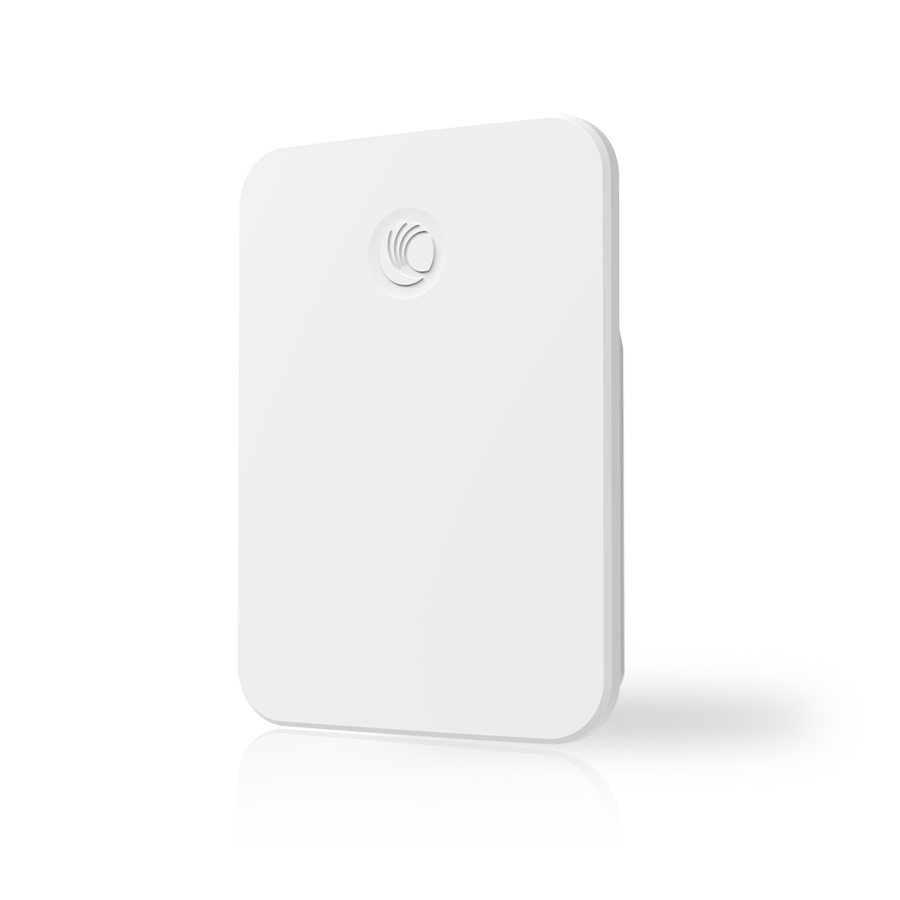

ePMP MP 3000 MicroPOP Fixed Wireless Access Point
Specifications
SPECTRUM
Channel Spacing
Configurable on 5 MHz increments
Frequency Range
5150 - 5875 MHz
Channel Width
20 | 40 | 80 MHz
INTERFACE
MAC (Media Access Control) Layer
Cambium Proprietary
Physical Layer
2X2 MIMO/OFDM
Ethernet Interfaced
100/1000BaseT, rate auto negotiated
Powering Methods Supported
802.3af or 802.3at Powered Device; 56VDC Passive PoE Injector (included)
LINK BUDGET
Antenna
Integrated dual-polarity 9 dBi omni-directional antenna
Transmit Power Range
0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)
