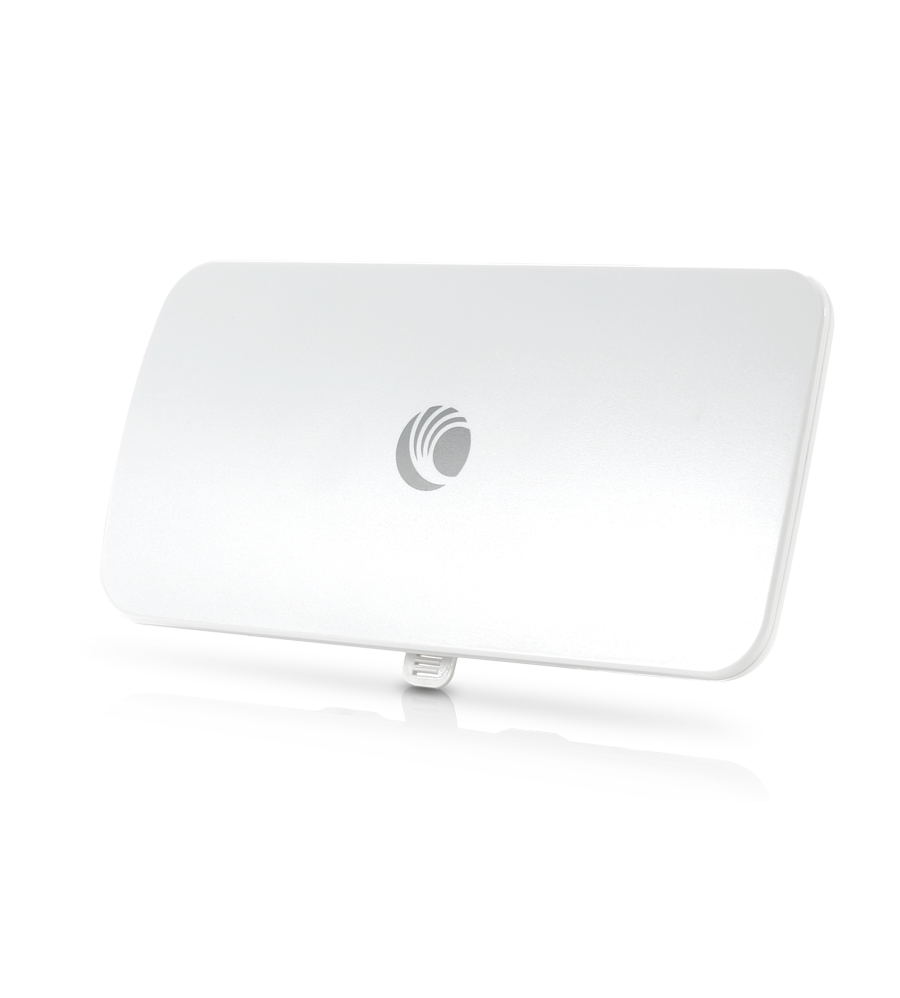

ePMP Force 300-16

Force 300-16 continues the tradition of previous products with a horizontal orientation mount providing a 15 degree beamwidth and 16 dBi gain.

The F300-16 offers a compelling, compact subscriber or point to point solution resilient to interference. Supporting peak throughput greater than 500 Mbps, the Force 300-16 also supports an always on spectrum analyzer.

ePMP Force 300-16

Features

Cambium Networks’ ePMP™ Force 300-16 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.

The ePMP Force 300-16 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.

QoS management offers an outstanding quality for triple play services – VoIP, video, and data – and provides three levels of traffic priority.

The ePMP Force 300-16 supports real time spectrum monitoring with out degradation in throughput with a horizontal orientation mount providing a 15 degree beamwidth and 16dBi gain, the F300-16 offers a compelling, compact subscriber or point to point solution resilient to interference.

Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.

This platform is for the user base that wants a smaller on premises footprint while enabling high gain.

Install is a breeze with the easy to install mount, capable of pole and wall mounting.

ePMP Force 300-16

Specifications

SPECTRUM

Channel Spacing
Configurable in 5 MHz increments
Frequency Range
Wide Band Operation 4910 - 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
Channel Width
20 | 40 | 80 MHz

INTERFACE

MAC (Media Access Control) Layer
Cambium
Proprietary Physical Layer
2x2 MIMO/OFDM
Ethernet Interfaced
10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™
VLAN
802.1Q with 802.1p priority

PERFORMANCE

ARQ
Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel
MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel
MCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -64 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel
MCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -59 dBm (per chain)
Modulation Levels (Adaptive)
MCS0(BPSK) to MCS9 (256 QAM-5/6)
Transmit Power Range
0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)
