ePMP 5 GHz Force 4500 Series Fixed Wireless Subscriber Module

Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The Force 4500 series of subscriber modules (SM) meets this demand offering high performance and low latency across both PMP and PTP deployments.

Force 4525
Data Sheet  Force 4525L
Data Sheet  Force 4525L Feedhorn
Data Sheet Where to Buy

ePMP 5 GHz Force 4500 Series Subscriber Module

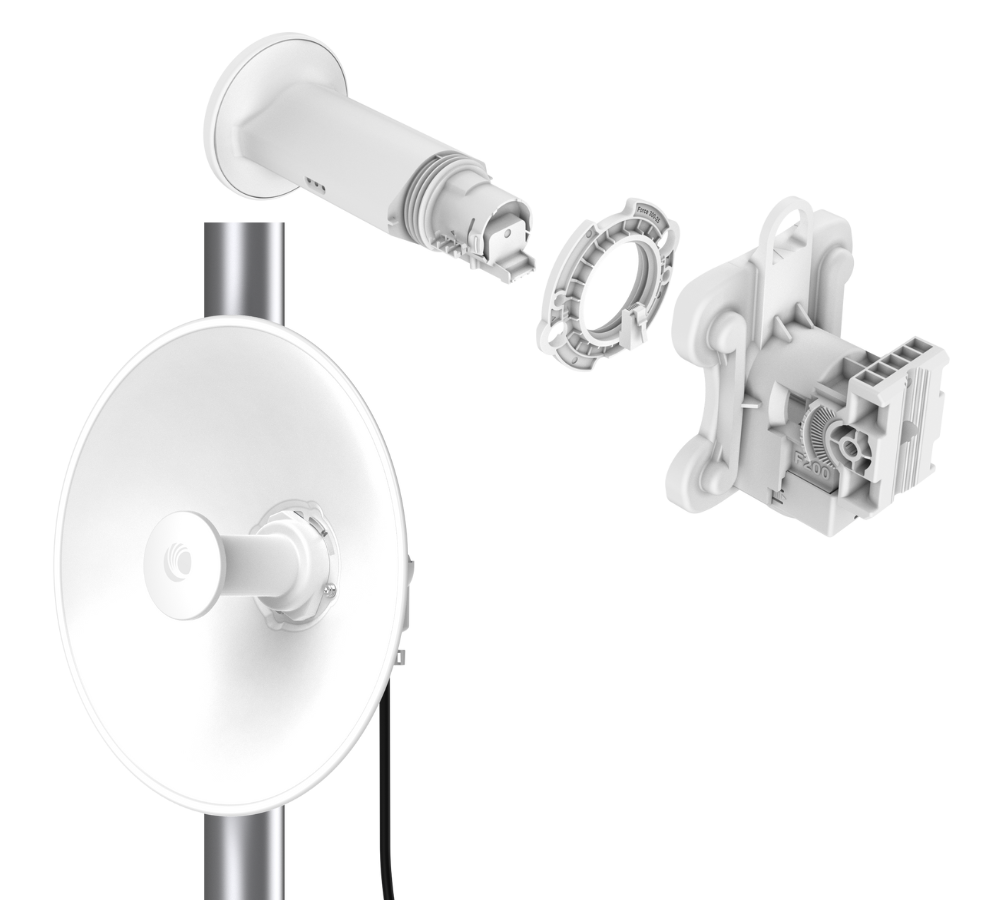

The Force 4500 Series of SMs is available in three models: the Force 4525 (available in North America only), the Force 4525L available in the rest of the world, and finally, the Force 4525L feedhorn, which provides an upgrade path to older subscriber models with a dish.

All models include the following:

  • High capacity and latencies less than 5 ms when using ePTP technology.
  • Proven air interface on top of 802.11ax technology
  • Interoperability with the ePMP 4500 Series AP which uses MU-MIMO to achieve more than 4 Gbps per sector by transmitting to two ePMP 4500 Series SMs simultaneously.
  • Security features meeting the requirements of enterprise, industrial, government and service provider users.
  • Management by Cambium Networks cnMaestro™ management system for easy provisioning, monitoring and upgrades.
  • Network planning with LINKPlanner and cnHeat.
  • 3-year hardware warranty and support from Cambium Networks.


Quick Look:

  • Broad selection of high-performance subscriber modules (SM) for point-to-point (PTP) and point-to-multipoint (PMP) fixed wireless broadband applications
  • SM in PMP applications interoperates with ePMP 4500 Access Points

Next-Level 5 GHz Performance: Cambium Networks ePMP 4500 Series

What's in the Box and How to Install

Force 4525 Force 4525L

ePMP 5 GHz Force 4500 Series Fixed Wireless Subscriber Module

Specifications

SPECTRUM

Channel Width MHz
20 | 40 | 80 MHz
Proprietary Physical Layer
ePMP air interface with 2x2 MIMO/OFDMA based on 802.11ax underlying technology
Channel Spacing
Configurable in 5 MHz increments
Frequency Range
Wide Band Operation 5150–5920 MHz

PERFORMANCE

ARQ
Yes
Transmit Power Range
100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts

PHYSICAL

Ethernet Interface
100/1000 BaseT, rate auto negotiated, 802.3at compliant
Surge Supression*
1 Joule Integrated
Environmental
IP55
Power Consumption
13 W
