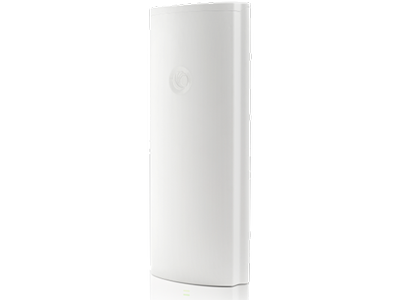

ePMP 3000 Sector Antenna

Cambium Networks has deployed more than five million radios around the world achieving unparalleled degrees of scalability. Continuing the tradition of designing and manufacturing industry leading antenna solutions, the 4×4 ePMP™ 3000 Sector Antenna encompasses all the key diff erentiations of the Cambium Antenna line and adds 4X4 Multi User MIMO Capability. Designed to work in 5 GHz spectrum and 90 degree coverage, the antenna is an integral part of the ePMP 3000 Access Point and allows for Multi User MIMO Operation.

ePMP 3000 Sector Antenna

ePMP 3000 Sector Antenna

Key Deployment Advantages

Frequency Re-use

Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has a minimum 30 dB front to back ratio over a wide rear facing aperture.

Channel Flexibility

Consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance.

Consistent Coverage

Excellent null fill capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector.

Designed for the Installer

Small, compact design, integrated ePMP radio mount and GPS antenna integration.

Predictable Performance

The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth.

ePMP 3000 Sector Antenna

Specifications

Key Specs

Frequency Range
4.9 GHz to 5.97 GHz
Gain
17 dBi
3 dB Beamwidth - Azimuth
70 degrees
3 dB Beamwidth - Elevation
6 degrees
Electrical Downtilt
-2 degrees
Polarization
2X Horizontal, 2X Vertical
