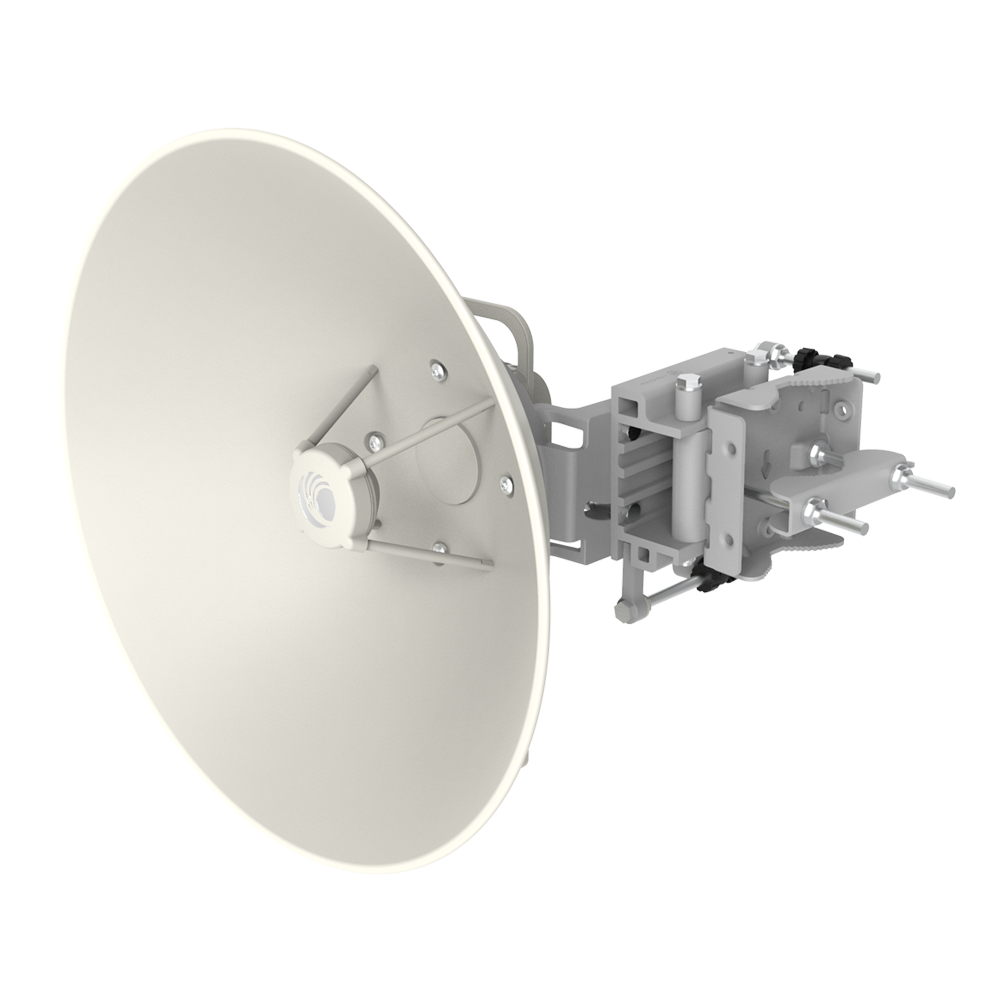

cnWave 5G Fixed Customer Premises Equipment

Extended range CPE with a 36 dBi high gain passive reflector antenna. The CPE supports 24.25 to 29.50 GHz in one SKU, simplifying operations and deployment planning. Deploy rapidly and easily using precise tools for alignment and standard PoE.

CPE Features:

  • Supports 24, 25 to 29.5 GHz bands in one single SKU​
    • 3GPP bands n257, n258 & n261​
  • Up to 400 Mbps throughput​
  • 35 dBi high gain, dish antenna​
  • Interfaces​
    • Gigabit Ethernet port with PoE​
    • Audio alignment port​
    • Nano SIM card (optional)

More information:

cnWave 5G Fixed Customer Premises Equipment

Specifications

SPECTRUM

Frequency Range
24.25 to 29.50 GHz
Channel Width
50, 56, 100, 112 MHz channels

INTERFACE

MAC (Media Access Control) Layer
5G NR air Interface
Ethernet Interface
100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
User Traffic
Ethernet Layer 2
Network Management
IPv4/IPv6 (dual stack), HTTP/HTTPS, TFTP, SNMPv2c and v3, Cambium Networks cnMaestro™
VLAN
802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID learning

PERFORMANCE

Maximum EIRP
+52 dBm
Hybrid ARQ
Yes, DL and UL
Maximum Deployment Range
Up to 10 km (6.4 mi)
Latency
10 ms, typical

SECURITY

Encryption
FIPS-197 128-bit AES, 256-bit AES (requires optional license for attached access point)
