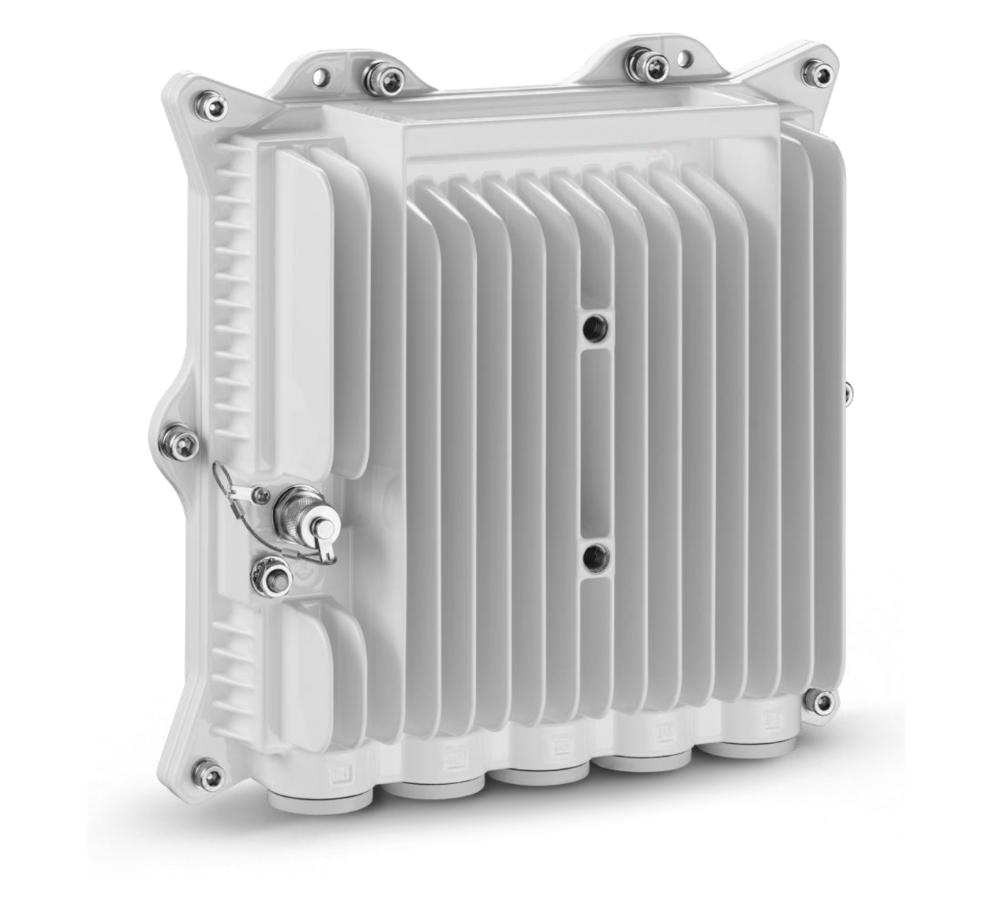

PTP 850EX E-band Radio, an ultrahigh capacity, all-outdoor Ethernet backhaul operating in the E-band (71‒86 GHz). PTP 850EX supports 250, 500, 1000, and 2000 MHz channels with BPSK to 1024 QAM and delivers up to 10 Gbps capacity in 1+0 configuration.
PTP 850EX
Specifications
RADIO
Radio Specs
71-76 GHz, 81-86 GHz
1+0, 2+0*, 1+1 (XPIC)*
Multiband with PTP 820C , PTPC HP, PTP 820S, or third-party microwave radio
Radio Features
BPSK to 1024 QAM with hitless ACMB
ATPC*
Adaptive bandwidth notification (EOAM)*
ETHERNET
Ethernet Interfaces
Port 1: DC port
Port 2: RJ45, 1 GE/management/PoE
Port 3: SFP28 - 1/2.5/10/25 GbE
Port 4: SFP28 - 1/2.5/10/25 GbE
Port 5: QSFP
Ethernet Features
MTU – 9612 Bytes
4K
VLAN add/remove/translate
Y.1731 Ethernet OAM
TECHNICAL SPECIFICATIONS
Mechanical Specs
Dimensions (Direct Mount): 228 mm x 233 mm x 76 mm
Weight 2.77 kg
Environmental Spec
-40°C to +55°C (-40°F to +131°F)
Power Input Specifications
Standard Input: -48 VDC
DC Input range: -40.5 to -60 VDC
Power Redundancy option by using both a DC power input and a passive PoE injector simultaneously
