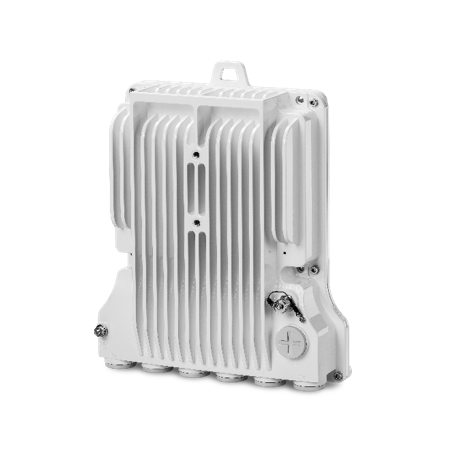

PTP 850C is next generation all-outdoor, multi-core unit. The PTP 850C has dual-core functionality enabling the system to operate up to 4 Gbps and deliver gigabit-plus capacity.
PTP 850C
Specifications
RADIO
Radio Specs
11-18 GHz
1+0 up to 4+0 Single/Dual Polarization, 1+1/2+2 HSB, 1+1/2+2 HSB-SD, 2+0 XPIC, 2x2+0 East/West Single/Dual Polarization
Radio Features
Enhanced Multi-Carrier ABC (up to 2+0)
Protection: 1+1 HSB/2+2 HSB, 1+1 HSB-SD1
High spectral utilization: BPSK to 4096 QAM w/ACM
Channel bandwidth: 14 to 224 MHz2
ETHERNET
Ethernet Interfaces
Port 1: Planned for future release
Port 2: RJ-45 - Electric Multi Rate 1/2.5/10 Gbps traffic interface/PoE port
Port 3: SFP – 1/2.5G traffic interface and Dual band port
Port 4: SFP – 1/10GE traffic interface/MIMO extension port (SFP+)
Port 5: SFP – 1/10GE traffic interface (SFP+)
Port 6: RJ-45 – Management/Protection interface - 100 Base-T
Note: SFP and SFP+ devices must be of industrial grade (-40°C to +85°C)
Ethernet Features
MTU – 9612 Bytes
Radio Spectral Efficiency: EN 302 217-2-2
Storage: ETSI EN 300 019-1-1 Class 1.2
Transportation: ETSI EN 300 019-1-2 Class 2.
Ingress Protection: IP67
TECHNICAL SPECIFICATIONS
Mechanical Specs
Dimensions (Direct Mount): 322mm(H), 227/270mm(W), 86mm(D), 6 kg 12.67”(H), 8.93”/10.62”(W), 3.38”(D), 13.2 lbs.
Pole Diameter Range (for Remote Mount Installation): 8.89 cm – 11.43 cm 3.5” – 4.5”
Environmental Spec
-33°C to +55°C (-45°C to +60°C extended); -27°F to +131°F (-49°F to +140°F extended)
Power Input Specifications
Standard Input: -48 VDC
DC Input range: -40.5 to -60 VDC
