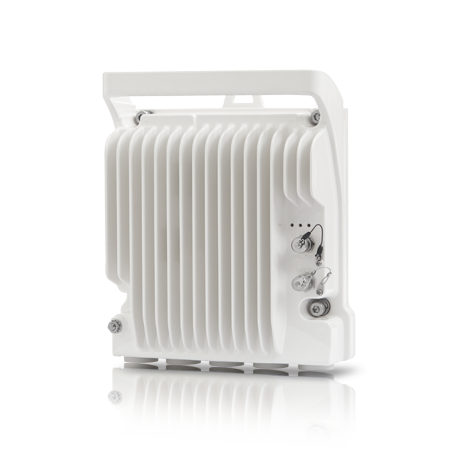

PTP 820S is an all-outdoor point-to-point licensed microwave unit.
PTP 820S
Specifications
RADIO
Frequency
6-38 GHz
Frequency
1+0, 1+1 HSB, 2+0
Protection
Protection: 1+1 HSB
Protection
QPSK to 2048 QAM w/ACM
Features
Advanced Frequency Reuse (AFR)
TECHNICAL
Dimensions
230mm(H), 233mm(W), 98mm(D), 6.0kg
Pole Diameter Range (for Remote Mount Installation)
8.89 cm – 11.43 cm
Environmental
-33°C to +55°C (-45°C to +60°C extended)
Power Input
Standard Input: -48 VDC, IDU DC Input range: -40 to -60 VDC
