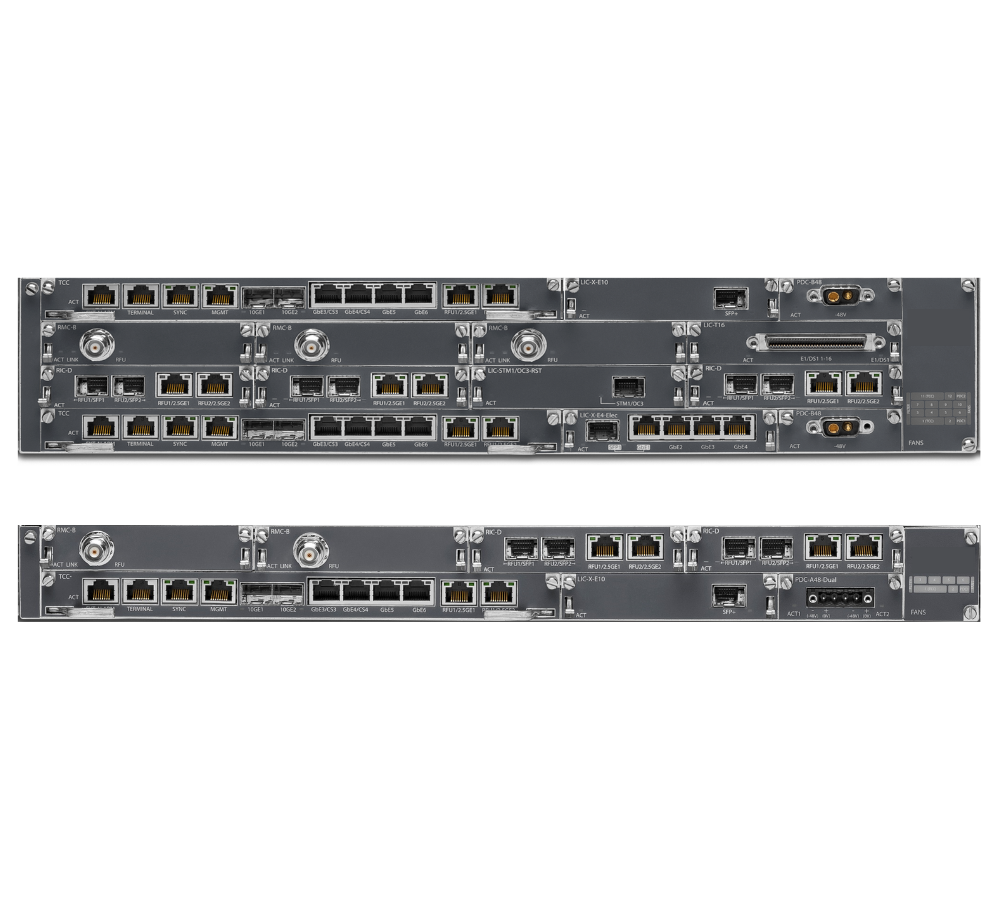

PTP 820A, which is a highly modular and flexible cellular backhaul product optimized for nodal deployment, with a small footprint, high density, and a high degree of scalability and availability.
PTP 820A
Specifications
RADIO
Standard Powr
6–38 GHz, 71–76 GHz, 81–86 GHz
High Power
6–11 GHz
Multi-Carrier Adaptive Bandwidth Control (up to 8+0)
Protection & Diversity:
HSB, SD (BBC & BBS)
High Spectral Use:
BPSK to 4096 QAM w/ACM
ETHERNET
Ethernet Interfaces
Up to 8 x 10/100Base-T (RJ-45), Up to 10 x 1000Base-T (RJ 45), Up to 2 x 2.5GBase-T (RJ-45), Up to 14 x 1000Base-X (SFP), Up to 8 x 10GBase-X (SFP+)
Management Interface
2 x 10/100 Base-T (RJ-45)
SFP Types
Optical 1000Base-LX (1310 nm) or SX (850 nm)F
MTU
9600 bytes
Quality of Service
Multiple Classification criteria (VLAN ID, P-bits, IPv4 DSCP, IPv6 TC, MPLS EXP)
8 priority queues per port
Deep buffering (configurable up to 64 Mbit per queue)
WRED
P-bit marking/remarking
Environmental
IDU
+23°F to +113°F
RFU
-27°F to +131°F (-49°F to +140°F extended)
