PTP 700 - Wireless Broadband Solution with FIPS 140 & MIL-SPEC Standards

One radio — many missions.

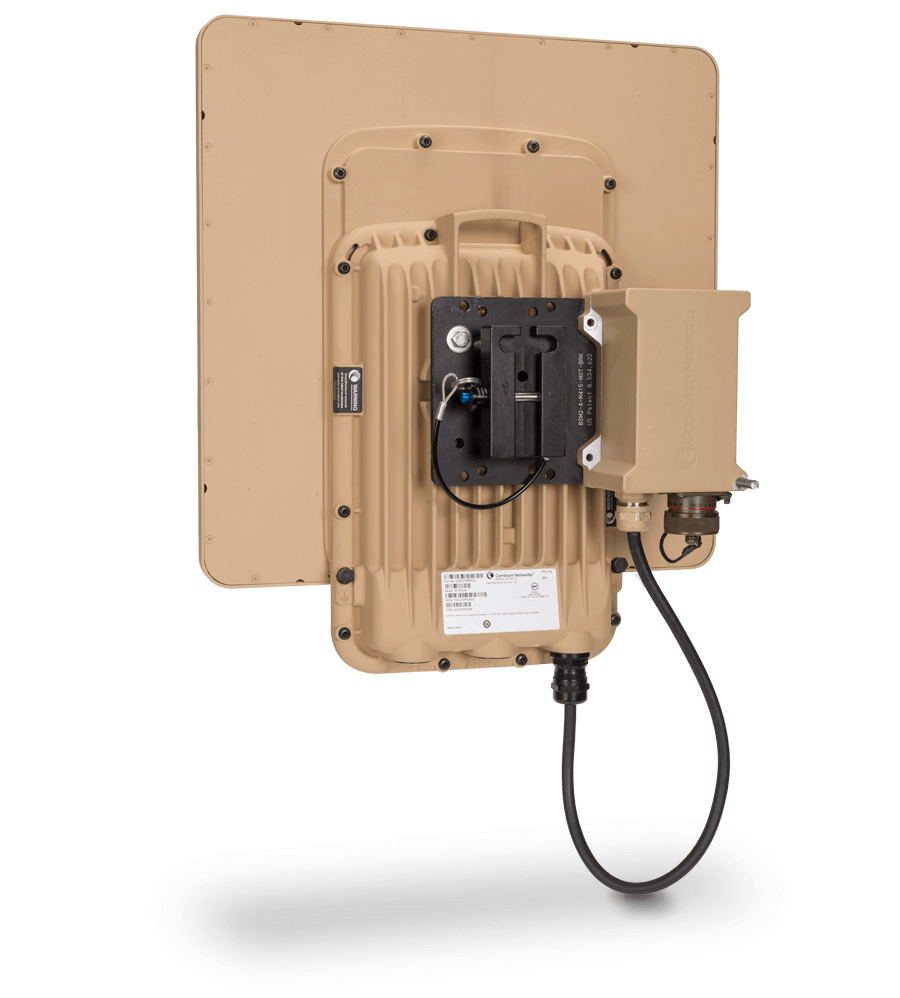

PTP 700 is a Point-to-Point wireless broadband solution for mission-critical communications in government, industrial, and public safety spaces. With FIPS 140 security and NTIA spectrum certifications, PTP 700 provides models with integrated antennas and/or connectorized for external antennas – allowing for flexible antenna selection at time of deployment. The PTP 700 Beam Steering ODU with integrated Smart Antenna provides electronic beamforming that allows for easy tactical installation and best-in-class interference mitigation in addition to the industry-leading spectral efficiency and processing capabilities of the PTP 700 family of products.

PTP 700 supports two different frequency bands. The PTP 45700 covers 4.4 GHz to 5.925 GHz and the PTP 78700 covers 7.125 GHz to 8.5 GHz.

45700
Data Sheet  78700
Data Sheet45700 Beam Steering
Data Sheet  Fed/Defense
Inquiries

PTP 700

PTP 700 for Mission-Critical PTP Communications Features FIPS 140-2 and NTIA Certification with 4.4 GHz to 5.9 GHz and 7.125 GHz to 8.5 GHz PTP Frequency

Frequency

4.4 GHz to 5.9 GHz and 7.125 GHz to 8.5 GHz

Throughput

up to 450 Mbps

Latency

1 - 3 msec

Flexible Channel Width

5, 10, 15, 20, 30, 40, and 45 MHz channels

Industry Standards

FIPS 140-2, MIL-STD-810G, IPv6, 1588v2 / SyncE (LTE-ready)

Reliability

Dynamic Spectrum Optimization

The PTP 700 breaks new ground in mission flexibility and overall project sustainability.

Overcoming obstacles

Whether deploying in first-responder tactical situations, over water to oil platforms, in urban canyons to video cameras and hot-spots, or along remote stretches of national borders for defense and situational awareness, the requirements for high-speed connectivity intersect with constraints on available spectrum, line of sight and non-line of sight topologies, IT/Enterprise integration, cyber-security threat prevention, and harsh environmental conditions.

Dynamic Spectrum Optimization™(DSO)

The challenging nature and complexity of these missions requires flexibility from systems that allow spectrum managers, network operators and implementation managers to negotiate changing program landscapes while staying within budgetary parameters. Dynamic Spectrum Optimization™ (DSO) is a unique capability offered by Cambium Networks that enables optimization of link performance by automatically sampling and changing channels to avoid interference without affecting link service. See the DSO White Paper for full details.

PTP 700

Specifications

RADIO TECHNOLOGY

RF BANDS
Wide-band operation 4.400 to 5.925 GHz in single SKU Supported bands include the following: - NATO Band IV / NTIA Compliant (4.40 GHz to 4.99 GHz) - 4.9 GHz Public - 5.1/5.2/5.4/5.8 GHz FCC, 5GHz ETSI

Wide-band operation 7.125 to 8.5 GHz in single SKU Supported band: NTIA and ETSI 7/8 GHz band
CHANNEL SIZES
5, 10, 15, 20, 30, 40, and 45 MHz channels
SPECTRAL EFFICIENCY
11.2 bps/Hz maximum for 7.125 to 8.500 GHz 10 bps/Hz maximum for 4.400 to 5.925 GHz
CHANNEL SELECTION
By Dynamic Spectrum Optimization™ (DSO) or manual intervention; automatic selection on start-up and continual self-optimization to avoid interference
MAXIMUM TRANSMIT POWER
29 dBm 4.400 to 5.925 GHz and 30 dBm 7.125 to 8.5 GHz
SYSTEM GAIN
Integrated: Up to 161 dB with 20 MHz channel and integrated 21 dBi antenna for PTP 45700 and up to 168 dB with 20 MHz channel and integrated 26 dBi antenna for PTP 78700; varies with modulation mode, channel size and spectrum Connectorized: Varies with modulation mode and antenna type Use Cambium Networks LINKPlanner to determine expected capacity and availability for a given deployment.
RECEIVER SENSITIVITY
-97 dBm with 5 MHz channel
MODULATION / ERROR CORRECTION
Fast Preemptive Adaptive Modulation featuring 13 modulation / FEC coding levels ranging from BPSK to 256 QAM dual payload MIMO
ANTENNA
Connectorized+Integrated: 21 dBi flat panel or external antenna via 2 x N-type connectors Connectorized: Can operate with a variety of single- and dual-polarity antennas through 2 x N-type female connectors
RANGE
Up to 155 miles (250 km)
SECURITY
128/256-bit AES Encryption (optional) HTTPS and SNMPv32 Identity-based user accounts Configurable password rules User authentication and RADIUS support Event logging and management; optional logging via syslog Disaster recovery and vulnerability management FIPS-197 compliant FIPS 140-2 Level 2 (compliant at launch); NIST Validation late-2015

ETHERNET BRIDGING

PROTOCOL
IEEE 802.3
USER DATA THROUGHPUT
Dynamically variable up to 500 Mbps Maximum in 7.125 to 8.500 GHz and up to 450 Mbps Maximum in 4.400 to 5.925 GHz conditions : 2x2, 45 MHz channel1 , 256 QAM
LATENCY
1 – 3 ms one-direction latency
QoS
8 Queues
PACKET CLASSIFICATION
Layer 2 and Layer 3 IEEE 802.1p, MPLS, Ethernet priority
PACKET PERFORMANCE
Line rate ( >850K packets per second)
TIMING TRANSPORT
Synchronous Ethernet; IEEE 1588v2 (optional)

MANAGEMENT & INSTALLATION

LED INDICATORS
Power status, Ethernet link status, and activity on Extended Range PoE supply
NETWORK MANAGEMENT
In-band and out-of-band management (OOBM)
SYSTEM MANAGEMENT
IPv6/IPv4 dual-stack management support Web access via browser using HTTP or HTTPS/TLS2 SNMP v1, v2c and v3, MIB-II and proprietary PTP MIB Cambium Wireless Manager, WM 4.0/SP4 or higher (optional) In-band On-line spectrum analyzer (no impact on payload traffic or network operation)
INSTALLATION
Built-in audio and graphical assistance for link optimization
CONNECTION
Distance between outdoor unit and primary network connection: up to 330 feet (100 meters) using Power-over-Gigabit Ethernet; longer distances up to 984 feet (300 meters) can be achieved using fiber interface

PHYSICAL

DIMENSIONS
Connectorized+Integrated Outdoor Unit (ODU): Width 371 mm (14.6”), Height 429 mm (16.9”), 96 mm (3.8”) Connectorized ODU: Width 204 mm (8.0”), Height 318 mm (12.5”), Depth 90 mm (3.5”)
WEIGHT
Connectorized+Integrated ODU: 5.3 kg (11.7 lbs.) including bracket Connectorized ODU: 3.1 kg (6.8 lbs.) including bracket
OPERATING TEMPERATURE
-40° to +140° F (-40° to +60° C), including solar radiation
SHOCK, VIBRATION, TEMPERATURE, HUMIDITY
MIL-STD-810G FOR 4.400 TO 5.825 GHz and MIL-STD-810H FOR 7.125 TO 8.500 GHz
DUST-WATER INTRUSION PROTECTION
IP66 and IP67

ENVIRONMENTAL & REGULATORY

REGULATORY PROTECTION AND SAFETY
UL60950-1 and -22; IEC60950-1 and -22; EN60950-1 and -22; CSA-C22.2 No. 60950-1; CSA-C22 No. 60950-22-7; CB approval for Global
RADIO
4.9 GHz: FCC Part 90Y, RSS-111 5.x GHz: FCC Part 15, sub-parts 15C and 15E; RSS 247 Issue 1; EN 302 502; EN 301 893; EN 302 625; Eire ComReg 02/71R1, UK Approval to IR2007

7.125 to 8.500 GHz: NTIA, ETSI
EMC
Europe – EN 301 489-1 and -17; FCC Part 15B Class B
